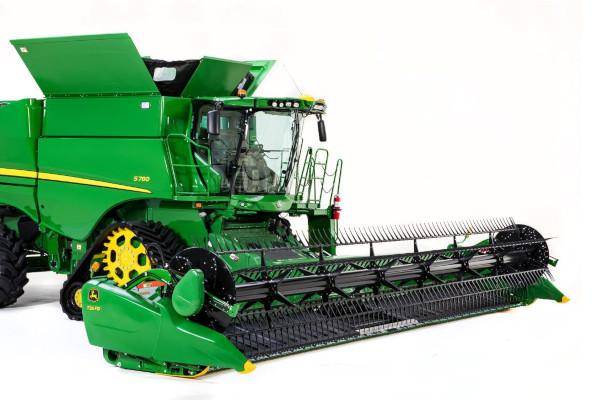

John Deere 735FD

Double tap to zoom



Features

HydraFlex™ Draper

  • Industry-exclusive Hydraflex™ technology
  • 35-foot operating width
  • Dual knife drive is timed
  • Clean cut with double-cut knife system

Specifications

Key Specs

Cutterbar length 10.67 m
35 ft
Knife drive Base: dual knife
Knife speed 490 cycles/min
Pickup reel operating speeds 6-70 rpm
Draper belts speed control Hydraulic from cab (side belts only)

Platform

Type Flex cutterbar draper

Cutterbar

Type Straight-line knife drive system
Length 10.67 m
35 ft
Knife drive Base: dual knife
Knife speed 490 cycles/min
Cutterbar tilt Base: hydraulic, maximum tilt 9 degree (angle)

Pickup reel

Number of slats Six bat poly base
Fingers Nylon
Diameter 106.7 cm
42 in.
Height control Hydraulic
Speed control Hydraulic
Reel lift Cylinder range: 185 mm
7.3 in.
Total range: 251 mm
9.9 in.
Reel fore and aft Cylinder range: 359 mm
14.1 in.
Total range: 616 mm
24.3 in.
Reel resume Base
Reel reverse Base
Operating speeds 6-70 rpm

Draper belts

Width Side belts: 101.6 cm
40 in.
Center belts: 139.7 cm
55 in.
Clean height Cleats: 19.05 mm
0.75 in.
Operating speed Side belts: variable up to 228 m/min
748 fpm
Center belts: 211 m/min
692 fpm
Speed control Hydraulic from cab (side belts only)
Center belt reverse Base

Feed drum

Diameter 414 mm
16 in.
Feed drum fingers Heavy-duty and round with breakaway notch and retainer
Diameter: 16 mm
0.625 in.
Number of fingers 20
Auger finger platform Triple chevron, retracting
Finger reach 152 mm
6 in.
Drum/auger reverse Base
Operating speed 234 rpm
Center clean out door Base

Header height sensing

Type Electrohydraulic
Header height sensing on the ground Base
Header height sensing off the ground Optional

Auxiliary top auger

Type Optional: hydraulic drive

Dimensions

Platform length 11.4 m
37.4 ft
Overall operating depth With dividers: 2.74 m
9 ft
Transport width, field position 11.8 m
38.7 ft

Weight

Approximate weight Pickup reel: 3,350 kg
7,385 lb
