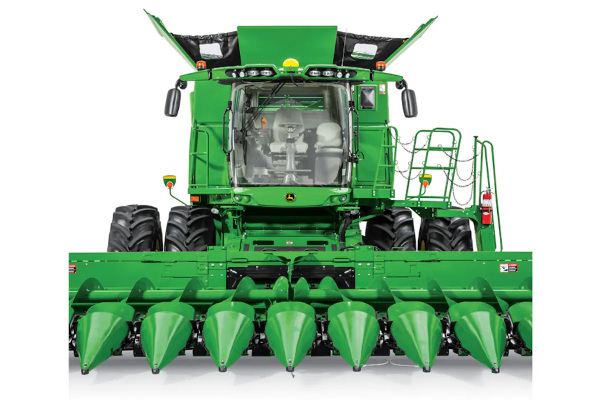

John Deere C8R

Double tap to zoom



Features

  • More bushels per hour and more acres per day with larger corn heads
  • All-day performance in all crops and conditions with John Deere corn heads
  • Treat residue like an asset rather than an afterthought
  • John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions

Specifications

Key Specs

Approximate overall width With 70-cm (27.6-in.) row spacing: 6.17 m
20.25 ft
With 75-cm (29.5-in.) row spacing: 6.1 m
20.01 ft
With 76.2-cm (30-in.) row spacing: 6.15 m
20.4 ft
With 91.4-cm (36-in.) row spacing: 7.7 m
25.2 ft
With 96.5-cm (38-in.) row spacing: 7.6 m
25 ft
Approximate folded width
Row spacings 70, 75, 76.2, 91.4, or 96.5 cm
27.6, 29.5, 30, 36, or 38 in.
Deck plate adjustment Hydraulic adjustment
Gatherer chain adjustment Spring loaded, self-adjusting
Gatherer chains Heavy-duty, 620, endless steel roller chain with chromed pins (no master connecting link)

Corn Head

Gatherer points Four-position, low-profile floating type hinged above gathering chains
Center and outer gatherers Hinged, quickly removable
Gatherer chains Heavy-duty, 620, endless steel roller chain with chromed pins (no master connecting link)
Minimum clearance between gatherer chains and ground 32 mm
1.25 in.
Row unit drive Enclosed, submerged-in-lubricant gearbox, driven by single input hexagon shaft
Gatherer chain adjustment Spring loaded, self-adjusting
Stalk rolls Opposed, intermeshing, and chopping (two per row-unit)
Deck plate adjustment Hydraulic adjustment
Slip clutch One per row-unit plus auger drive
Trash knives Full-length, one-piece, heat-treated steel
Stalk deflectors Factory-installed option

Dimensions

Approximate overall width With 70-cm (27.6-in.) row spacing: 6.17 m
20.25 ft
With 75-cm (29.5-in.) row spacing: 6.1 m
20.01 ft
With 76.2-cm (30-in.) row spacing: 6.15 m
20.4 ft
With 91.4-cm (36-in.) row spacing: 7.7 m
25.2 ft
With 96.5-cm (38-in.) row spacing: 7.6 m
25 ft
Approximate folded width Points in operating position (lowered)
3.2 m
10.58 ft
Points folded up (service position)
With 70-cm (27.6-in.) row spacing: 2.6 m
8.58 ft
With 75-cm (29.5-in.) row spacing: 2.6 m
With 76.2-cm (30-in.) row spacing: 2.6 m
With 91.4-cm (36-in.) row spacing: 3.2 m
10.58 ft
With 96.5-cm (38-in.) row spacing: 3.2 m
Approximate shipping weight (includes shipping skid) With 70-cm (27.6-in.) row spacing: 2667 kg
5880 lb
With 75-cm (29.5-in.) row spacing: 4275 kg
9425 lb
With 76.2-cm (30-in.) row spacing: 2917 kg
6431 lb
With 91.4-cm (36-in.) row spacing: 2764 kg
6094 lb
With 96.5-cm (38-in.) row spacing: 3965 kg
8741 lb
Row spacings 70, 75, 76.2, 91.4, or 96.5 cm
27.6, 29.5, 30, 36, or 38 in.
Standard weight With 70-cm (27.6-in.) row spacing: non StalkMaster™ 2670 or StalkMaster 2917 kg
5886 or 6431 lb
With 75-cm (29.5-in.) row spacing: non StalkMaster 2658 or StalkMaster 2764 kg
5860 or 6094 lb
With 76.2-cm (30-in.) row spacing: non StalkMaster 2575 or StalkMaster 2829 kg
5677 or 6237 lb
With 91.4-cm (36-in.) row spacing: non StalkMaster 2760 or StalkMaster 3074 kg
6085 or 6777 lb
With 96.5-cm (38-in.) row spacing: non StalkMaster 2487 or StalkMaster 2667 kg
5483 or 5880 lb

Additional information

Date collected 15 June 2020
