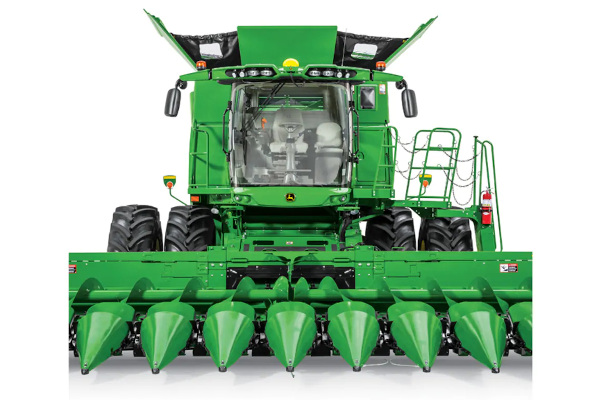

John Deere C18R

Double tap to zoom



Features

  • More bushels per hour and more acres per day with larger corn heads
  • All-day performance in all crops and conditions with John Deere corn heads
  • Treat residue like an asset rather than an afterthought
  • John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions

Specifications

Key Specs

Approximate overall width With 50.8-cm (20-in.) row spacing: 9.5 m
31.17 ft
With 55.9-cm (22-in.) row spacing: 10 m
32.8 ft
Approximate folded width
Row spacings 50.8 or 55.9 cm
20 or 22 in.
Deck plate adjustment Hydraulic adjustment
Gatherer chain adjustment Spring loaded, self-adjusting
Gatherer chains Heavy-duty, 620, endless steel roller chain with chromed pins (no master connecting link)

Corn Head

Gatherer points Four-position, low-profile floating type hinged above gathering chains
Center and outer gatherers Hinged, quickly removable
Gatherer chains Heavy-duty, 620, endless steel roller chain with chromed pins (no master connecting link)
Minimum clearance between gatherer chains and ground 32 mm
1.25 in.
Row unit drive Enclosed, submerged-in-lubricant gearbox, driven by single input hexagon shaft
Gatherer chain adjustment Spring loaded, self-adjusting
Stalk rolls Opposed, intermeshing, and chopping (two per row-unit)
Deck plate adjustment Hydraulic adjustment
Slip clutch One per row-unit plus auger drive
Trash knives Full-length, one-piece, heat-treated steel
Stalk deflectors Factory-installed option
Chopping options

Dimensions

Approximate overall width With 50.8-cm (20-in.) row spacing: 9.5 m
31.17 ft
With 55.9-cm (22-in.) row spacing: 10 m
32.8 ft
Approximate folded width Points in operating position (lowered)
2.97 m
9.75 ft
Points folded up (service position)
2.3 m
7.58 ft
Approximate shipping weight (includes shipping skid) With 50.8-cm (20-in.) row spacing: 4838 kg
10,666 lb
With 55.9-cm (22-in.) row spacing: 4854 kg
10,701 lb
Row spacings 50.8 or 55.9 cm
20 or 22 in.
Standard weight With 50.8-cm (20-in.) row spacing: non StalkMaster™ 4838 or StalkMaster 5149 kg
10,666 or 11,352 lb
With 55.9-cm (22-in.) row spacing: non StalkMaster 4854 or StalkMaster 5404 kg
10,701 or 11,914 lb

Additional information

Date collected 15 June 2020
