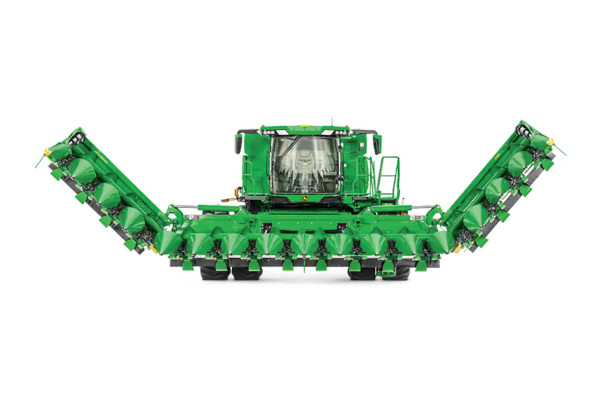

John Deere C16F

Double tap to zoom



Features

  • More bushels per hour and more acres per day with larger corn heads
  • Spend more time harvesting your crop and less time managing your harvest
  • All-day performance in all crops and conditions with John Deere corn heads
  • Treat residue like an asset rather than an afterthought
  • John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions

Specifications

Key Specs

Approximate overall width With 50.8-cm (20-in.) row spacing: 8.5 m
27.75 ft
With 55.9-cm (22-in.) row spacing: 9.24 m
30.33 ft
With 76.2-cm (30-in.) row spacing: 12.3 m
40.33 ft
Approximate folded width With 50.8-cm (20-in.) row spacing: 5.3 m
17.5 ft
With 55.9-cm (22-in.) row spacing: 5.87 m
19.25 ft
With 76.2-cm (30-in.) row spacing: 6.3 m
20.75 ft
Row spacings 50.8, 55.9, or 76.2 cm
20, 22, or 30 in.
Deck plate adjustment Hydraulic adjustment
Gatherer chain adjustment Spring loaded, self-adjusting
Gatherer chains Heavy-duty, 620, endless steel roller chain with chromed pins (no master connecting link)

Corn Head

Gatherer points Four-position, low-profile floating type hinged above gathering chains
Center and outer gatherers Hinged, quickly removable
Gatherer chains Heavy-duty, 620, endless steel roller chain with chromed pins (no master connecting link)
Minimum clearance between gatherer chains and ground 32 mm
1.25 in.
Row unit drive Enclosed, submerged-in-lubricant gearbox, driven by single input hexagon shaft
Gatherer chain adjustment Spring loaded, self-adjusting
Stalk rolls Opposed, intermeshing, and chopping (two per row-unit)
Deck plate adjustment Hydraulic adjustment
Slip clutch One per row-unit plus auger drive
Trash knives Full-length, one-piece, heat-treated steel
Stalk deflectors Factory-installed option

Dimensions

Approximate overall width With 50.8-cm (20-in.) row spacing: 8.5 m
27.75 ft
With 55.9-cm (22-in.) row spacing: 9.24 m
30.33 ft
With 76.2-cm (30-in.) row spacing: 12.3 m
40.33 ft
Approximate folded width Points in operating position (lowered)
With 50.8-cm (20-in.) row spacing: 2.9 m
9.67 ft
With 55.9-cm (22-in.) row spacing: 2.9 m
With 76.2-cm (30-in.) row spacing: 3 m
10 ft
Points folded up (service position)
With 50.8-cm (20-in.) row spacing: 2.3 m
7.5 ft
With 55.9-cm (22-in.) row spacing: 2.3 m
With 76.2-cm (30-in.) row spacing: 2.6 m
8.5 ft
With 50.8-cm (20-in.) row spacing: 5.3 m
17.5 ft
With 55.9-cm (22-in.) row spacing: 5.87 m
19.25 ft
With 76.2-cm (30-in.) row spacing: 6.3 m
20.75 ft
Approximate shipping weight (includes shipping skid) With 50.8-cm (20-in.) row spacing: non StalkMaster™ 5123 or StalkMaster 5547 kg
11,294 or 12,227 lb
With 55.9-cm (22-in.) row spacing: non StalkMaster 5212 or StalkMaster 5598 kg
11,490 or 12,341 lb
With 76.2-cm (30-in.) row spacing: non StalkMaster 5627 or StalkMaster 6106 kg
12,405 or 13,462 lb
Row spacings 50.8, 55.9, or 76.2 cm
20, 22, or 30 in.
Standard weight With 50.8-cm (20-in.) row spacing: non StalkMaster 5123 or StalkMaster 5547 kg
11,294 or 12,227 lb
With 55.9-cm (22-in.) row spacing: non StalkMaster 5212 or StalkMaster 5598 kg
11,490 or 12,341 lb
With 76.2-cm (30-in.) row spacing: non StalkMaster 5627 or StalkMaster 6106 kg
12,405 or 13,462 lb

Additional information

Date collected 15 June 2020
