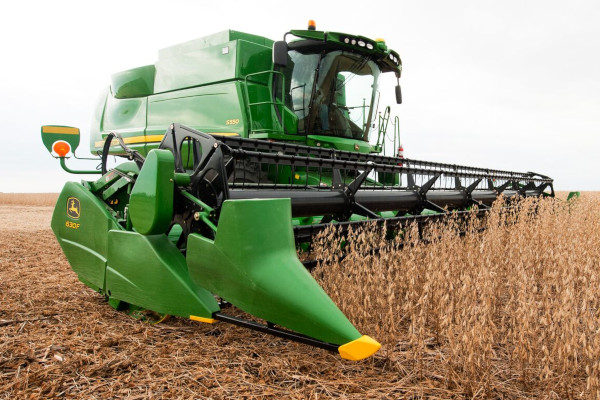

John Deere 630F

Double tap to zoom



Features

  • Epicyclic knife drive increases drive capacity
  • Raised-height skid shoe
  • Less reel, mounting, and drive parts
  • Easy adjustments reduce downtime



Specifications

Key Specs

Overall width 9.6 m
31.7 ft
Cutterbar length 9.2 m
30 ft
Flex cutterbar float range 152 mm
6 in.
Tilt adjustment Located on feederhouse: 17 degree (angle)
Height control Hydraulic
Speed control Hydraulic

Platform

Type Auger

Cutterbar

Type Knife system with in-line gearbox: 102 mm
4 in.
Cutterbar angle 10 degree (angle)
Cutterbar length 9.2 m
30 ft
Flex cutterbar float range 152 mm
6 in.
Tilt adjustment Located on feederhouse: 17 degree (angle)
Knife sections Heavy-duty, over-serrated
Guards Forged steel, heat-treated
Backshaft speed 490 rpm
Knife speed 520 cycles/min

Platform auger

Diameter 66 cm
26 in.
Operating speed Slow down: 135, 152 rpm
Speed up: 170 rpm

Reel

Number for slats 6
Diameter 1.067 m
3.5 ft

Reel controls

Height control Hydraulic
Speed control Hydraulic
Operating speeds 6-44 rpm

Hydraulics

Reel drive system pressure 14,000 (+/- 1,000) kPa
2,000 (+/- 150) psi
Reel fore/aft stroke 359 mm
14.1 in.

Dimensions

Cutting width 9.1 m
30 ft
Gathering width 9.2 m
30.1 ft
Overall width 9.6 m
31.7 ft
Approximate weight 2,559 kg
5,641 lb
