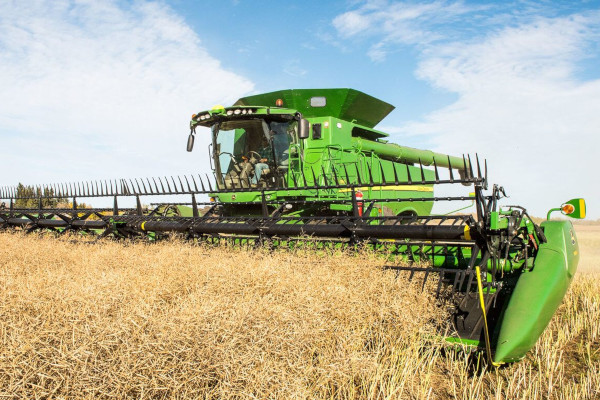

John Deere S780

Double tap to zoom



Features

  • Combine Advisor™ package helps to set, optimize and automate main combine functions when conditions change
  • Fully automated yield sensor calibration with ActiveYield™ supplies accurate data with no time spent calibrating
  • Comfortable S700 cab is common with tractors and sprayers for ease of use
  • Continued quality manufacturing of S-Series combines maximizes uptime and productivity

Specifications

Key Specs

Engine type John Deere PowerTech™ PSS engine
13.5 L
824 cu in.
Rated power 353 kW
473 hp
Fuel capacity 1,250 L
330 gal.
Rotor length 312 cm
123 in.
Rotor diameter 76.2 cm
30 in.
Concave area 1.1 m2
11.8 sq ft
Separating area 1.54 m2
16.6 sq ft
Total cleaning area (louvered) 5.9 m2
63.5 sq ft
Grain tank size 14,100 L
400 bu
Unloading rate 135 L/s
3.8 bu/sec

Engine

Engine type John Deere PowerTech PSS engine
13.5 L
824 cu in.
Emission level Final Tier 4 / Tier 2 (Australia/New Zealand)
Rated speed 2,100 rpm
Rated power 353 kW
473 hp
Power boost @ rated speed 37 kW
50 hp
Fuel capacity 1,250 L
330 gal.

Feeding

Drive type Fixed or multi-speed
Conveyor chain slat type Cast iron
Width 139.7 cm
55 in.
Length 172.5 cm
67.9 in.
Feed Accelerator, Stone Trap (FAST) Reverser
Standard
Standard

Threshing/ Separating

Separator type Rotary
Rotor length 312 cm
123 in.
Rotor diameter 76.2 cm
30 in.
Rotor speed range 210-1,000 rpm
Concave area 1.1 m2
11.8 sq ft
Separating area 1.54 m2
16.6 sq ft
Discharge grate area 0.45 m2
4.8 sq ft

Cleaning

Front chaffer 0.5 m2
5.4 sq ft
Front chaffer extension 0.8 m2
8.6 sq ft
Chaffer 2.5 m2
26.9 sq ft
Sieve area 2.1 m2
22.6 sq ft
Total cleaning area (louvered) 5.9 m2
63.5 sq ft
Cleaning fan speed 620-1,350 rpm

Grain handling

Grain tank size 14,100 L
400 bu
Unloading auger length 6.9 or 7.9 m
22.5 or 26 ft
Unloading rate 135 L/s
3.8 bu/sec

Base weight - less head

Total machine 20,750 kg
45,746 lb

Manufacturing location

Country USA, East Moline, Illinois

Additional information

Date collected 04-May-2018
