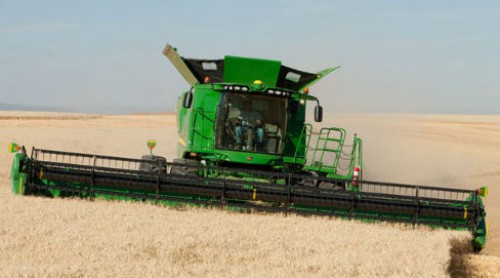

John Deere 630D Draper

John Deere 630D Draper for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

600D Draper Platforms


  • Windrowing capability with 600D Drapers
  • Dual-knife drive system is timed
  • Cutterbar is closer to the ground
  • Stainless-steel feed floor
Manufacturer John Deere
Model 630D
Type  Straight line knife drive system
Length  9.3 m
   30.5 ft
Knife drive  Dual knife base, single optional (for combine use only)
Knife speed  520 cycles/min
Cutterbar tilt  Base hydraulic, 9 degrees tilt maximum
Pickup reel
Number of slats  6 bat poly base, 6 bat steel optional
Fingers  Nylon base, steel optional
Diameter  1,067 mm
   42 in.
Height control  Hydraulic
Speed control  Hydraulic
Reel lift  Cylinder stroke 330 mm
   13 in.
   Total Range 391.5 mm
   15.4 in.
Reel fore and aft  Cylinder stroke 359 mm
   14.1 in.
   Total range 620 mm
   24.4 in.
Reel resume  Base
Reel reverse  Base
Operating speeds  6-54 rpm
Operating speeds (54-in. reel)  ---
Slat reel
Number of slats  ---
Diameter  ---
Height control  ---
Speed control  ---
Operating speeds  ---
Draper belts
Width  Side belts 1,016 mm
   40 in.
   Center belts 1,397 mm
   55 in.
   Center belt not included with SPW configuration
Clean height  25.4 mm
   1 in.
Operating speed  Side belts: variable up to 223 m/min
   735 fpm
   Center belts: 212 m/min
   695 fpm
   Center belt not included with SPW configuration
Speed control  Hydraulic from cab
Center belt reverse  Base; Center belt not included with SPW configuration
Feed drum
Diameter  406 mm
   16 in.
   Feed drum not included with SPW configuration
Feed drum fingers  Heavy duty round 16 mm (0.625 in) diameter with breakaway notch and retainer
Number of fingers  18
Auger finger platform  Dual chevron, retracting
Finger reach  195 mm
   6 in.
Drum/auger reverse  Base
Operating speed  195 rpm
Center clean out door  Base
Header height sensing
Type  Electro-hydraulic base
Header height sensing on the ground  Base
Header height sensing off the ground  Base
Auxiliary top auger
Type  Optional hydraulic drive
Platform length  10.0 m
   32.9 ft
Overall operating depth  2.5 m
   8.2 ft
Transport width, field position  9.9 m
   32.5 ft
Transport width on wheel, less dividers  2.7 m
   8.9 ft
Transport length, hitch extended  12.3 m
   40.4 ft
Approximate weight (slat reel)  ---
Approximate weight (pickup reel)  Combine only 3,109 kg
   6,855 lb
   SPW only 2,509 kg
   5,532 lb
Approximate weight (with transport)  Combine only 3,286 kg
   7,245 lb
   SPW only 2,686 kg
   5,922 lb
Approximate weight (optional 54-in. reel)  ---
