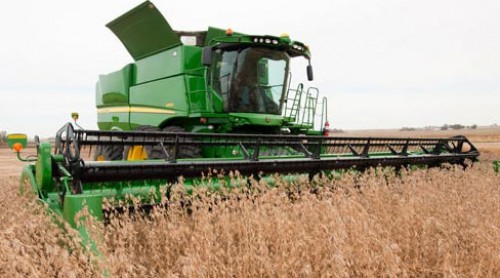

John Deere S660

John Deere S660 for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

S Series Combines

Download Brochure Grain Harvesting Brochure



  • Flexible cab options
  • Push-button shift transmission provides ease of operation
  • 300-bu (10,600-L) S-Series grain tank
Manufacturer John Deere
Model S660 S-Series Combine (2017)
Engine
Engine type  9.0 L
   548 cu in.
Emission level  Final Tier 4 / Tier 2 (Australia/New Zealand)
Rated speed  2,200 rpm
Rated power  239/249 kW
   320/333 hp
Power boost @ rated speed  25 kW
   34 hp
Fuel capacity  950 L
   250 gal.
Engine family
Feeding
Drive type  Fixed or variable
Conveyor chain slat type  Cast iron
Width  1,397 mm
   55 in.
Length  1,727 mm
   68 in.
Feed Accelerator, Stone Trap (FAST)  Standard
Reverser  Standard
Threshing/ Separating
Separator type  Rotary
Rotor length  3,124 mm
   123 in.
Rotor diameter  762 mm
   30 in.
Rotor speed range  210-1,000 rpm
Concave area  1.1 m2
   1,705 sq in.
Separating area  1.54 m2
   2,390 sq in.
Discharge grate area  0.36 m2
   555 sq in.
Cleaning
Front chaffer  0.5 m2
   801 sq in.
Front chaffer extension  ---
Chaffer  2.5 m2
   3,824 sq in.
Sieve area  2.1 m2
   3,255 sq in.
Total cleaning area (louvered)  5.1 m2
   7,905 sq in.
Cleaning fan speed  620-1,350 rpm
Grain handling
Grain tank size  10,600 L
   300 bu
Unloading auger length  6.9 or 7.9 m
   22.5 or 26 ft
Unloading rate  116.3 L/s
   3.3 bu/sec
Base weight - less head
Total machine  18,400 kg
   40,565 lb
Manufacturing location
Country  USA, East Moline, Illinois
