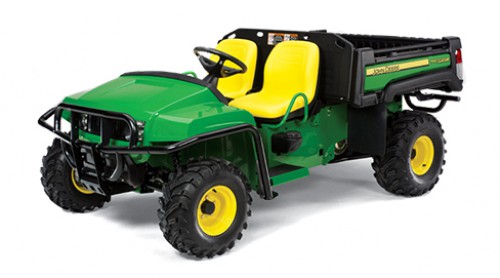

John Deere TX 4x2

John Deere TX 4x2 for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Traditional Utility Vehicles


  • Best in class work capability
  • Wide stance for enhanced stability
  • Best in class cargo box
Manufacturer John Deere
Model Gator TX 4x2 (2016)
Type  4-cycle gas
Displacement  675 cc cc
   41.2 cu in.
Power  11.6* kW
   15.5 hp
Cooling system  Air
Transmission  Continuously variable transmission (CVT)
Final drive  Fully enclosed; oil bath
Four wheel drive  No
Traction assist  Mechanically Activated Differential Lock
Descent control  No
Maximum traveling speed  0-32 forward km/h
   0-20 forward mph
   0-31.2 reverse km/h
   0-19.4 reverse mph
Front  Independent spring over shock, single A-arm
Rear  Semi-independent coil over shock (COS) system
Type  All-wheel hydraulic disc
Park brake  Rear mechanical disc, hand operated
Front  Two 22x9.50-10, 4 PR,
Rear  ---
Dry weight  ---
Dimensions / Capacities
Wheelbase  1955.8 mm
   77 in.
Front tread centers  1270 mm
   50 in.
Rear tread centers  1219.3 mm
   48 in.
Height  1108 mm
   43.6 in.
Width  1525 mm
   60 in.
Length  2.75 mm
   108.1 in.
Ground clearance  14.4 cm
   5.7 in.
Fuel capacity  5.0 g
Cargo box dimensions  1143 x 304.8 x 1320 mm
   45 x 12 x 52 in.
Cargo box capacity  272 kg
   600 lb
Payload capacity  454 kg
   1000 lb
Towing capacity  454 kg
   1000 lb
Hitch  Standard 2-in. receiver
Color  Green/Yellow
Power steering  No
Battery  340 Cold Cranking Amps @ -18C (0F)
Alternator  16.6 @ 3700 rpm (regulated) amp
Instrumentation  Fuel Gauge, Hour Meter listed in the Sales Manual
Storage  Cup Holders, Glove Box
Seating  Bucket Seats
