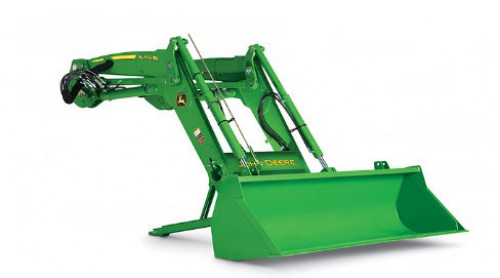

John Deere 640R

John Deere 640R for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Utility Tractor Loaders



  • Tool-free removal and attachment with just a few, simple steps
  • Frame design that allows for maximum maneuverability
  • Repositioned leveling links for better visibility
  • Automatic Mast Latch system for quick change from loader to three-point implements
Manufacturer John Deere
Model 640R MSL on 6105R, 6115R, 6125R
Technical drawing
Technical drawing  View diagram
Tractor
Model  6105R, 6115R, 6125R
Front tire  480/70R24
Rear tire  520/70R38
Front axle configuration  ---
Wheelbase  2580 mm
Pump capacity, gpm  114 L/min
Rated pressure, psi  2900 psi
Loader
Leveling configuration  Mechanical Self Leveling (MSL)
Bucket used  HEAVY DUTY 2150 mm
Bucket weight, lb (kg)  327 kg
   721 lb
Lift capacity at full height, lb (kg)  ---
Measured at pivot (U)  2188 kg
   4824 lb
Measured at 500 mm ahead of pivot (V)  ---
Measured at 800 mm ahead of pivot (V)  2197 kg
   4844 lb
Lift capacity at 59 in. (1500 mm), lb (kg)  ---
Measured at pivot (W)  2533 kg
   5584 lb
Measured at 500 mm ahead of pivot (X)  ---
Measured at 800 mm ahead of pivot (X)  2387 kg
   5262 lb
Boom breakout force, lbf (kgf)  ---
Measured at pivot (Y)  2875 kgf
   6338 lbf
Measured at 500 mm ahead of pivot (Z)  ---
Measured at 800 mm ahead of pivot (Z)  2509 kgf
   5531 lbf
Bucket rollback force capacity, lbf (kgf)  ---
At maximum height (VV)  2570 kgf
   5666 lbf
At 59-in. (1500-mm) lift height (XX)  4311 kgf
   9504 lbf
At ground-level line (ZZ)  4314 kgf
   9511 lbf
Dimensions  ---
Maximum lift height, in. (mm) (A)  4158 mm
   164 in.
Clearance  ---
At full height - bucket level, in. (mm) (B)  3918 mm
   154 in.
At full height - bucket dumped, in. (mm) (C)  3149 mm
   124 in.
Overall length (I+F), ft (m)  ---
Overall height in carry position, ft (m) (J)  ---
Digging depth, in. (mm) (H)  -48 mm
   -2 in.
Reach  ---
At maximum height, in. (mm) (D)  1042 mm
   41 in.
At ground level - bucket level, in. (mm) (F)  2804 mm
   110 in.
Bucket angle  ---
Dump angle, degrees (E)  -59 degree (angle)
Rollback angle, degrees (G)  48 degree (angle)
Dump angle, ground  -122 degree (angle)
Cycle times  ---
Loader raise, seconds  3.31 seconds
Loader lower, seconds  2.48 seconds
Bucket dump, seconds  1.81 seconds
Bucket rollback, seconds  1.81 seconds
Date collected  ---
