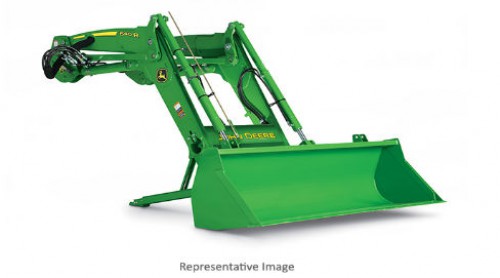

John Deere 620R

John Deere 620R for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Utility Tractor Loaders



  • Automatic Mast Latch for fast implement changeover
  • Repositioned leveling links for better visibility
  • Designed for maximum tractor maneuverability
  • Integrated stands for tool free attachment and removal
Manufacturer John Deere
Model 620R MSL on 6105R/M, 6115R/M, and 6125R/M
Technical drawing
Technical drawing  View diagram
Tractor
Model  6105R/M, 6115R/M, 6125R/M
Front tire  480/70R24
Rear tire  520/70R38
Front axle configuration  MFWD with Limited Slip Differential
Wheelbase  2580 mm
   102 in.
Pump capacity, gpm  114 L/min
   30.1 gpm
Rated pressure, psi  200 bar
   2901 psi
Loader
Leveling configuration  Mechanical Self Leveling (MSL)
Bucket used  2150HD Grapple
Bucket weight, lb (kg)  281 kg
   619 lb
Lift capacity at full height, lb (kg)  ---
Measured at pivot (U)  2348 kg
   5176 lb
Measured at 500 mm ahead of pivot (V)  ---
Measured at 800 mm ahead of pivot (V)  2189 kg
   4829 lb
Lift capacity at 59 in. (1500 mm), lb (kg)  ---
Measured at pivot (W)  2686 kg
   5922 lb
Measured at 500 mm ahead of pivot (X)  ---
Measured at 800 mm ahead of pivot (X)  2531 kg
   5580 lb
Boom breakout force, lbf (kgf)  ---
Measured at pivot (Y)  3006 kgf
   6627 lbf
Measured at 500 mm ahead of pivot (Z)  ---
Measured at 800 mm ahead of pivot (Z)  2546 kgf
   5613 lbf
Bucket rollback force capacity, lbf (kgf)  ---
At maximum height (VV)  2433 kgf
   5364 lbf
At 59-in. (1500-mm) lift height (XX)  4301 kgf
   9482 lbf
At ground-level line (ZZ)  4238 kgf
   9343 lbf
Dimensions  ---
Maximum lift height, in. (mm) (A)  4131 mm
   163 in.
Clearance  ---
At full height - bucket level, in. (mm) (B)  3891 mm
   153 in.
At full height - bucket dumped, in. (mm) (C)  3123 mm
   123 in.
Overall length (I+F), ft (m)  4.9 m
   16.2 ft
Overall height in carry position, ft (m) (J)  ---
Digging depth, in. (mm) (H)  53 mm
   2 in.
Reach  ---
At maximum height, in. (mm) (D)  819 mm
   32 in.
At ground level - bucket level, in. (mm) (F)  2504 mm
   99 in.
Bucket angle  ---
Dump angle, degrees (E)  -59 degree (angle)
Rollback angle, degrees (G)  48 degree (angle)
Dump angle, ground  -99 degree (angle)
Cycle times  ---
Loader raise, seconds  3.37 seconds
Loader lower, seconds  2.53 seconds
Bucket dump, seconds  1.81 seconds
Bucket rollback, seconds  1.81 seconds
Date collected  ---
