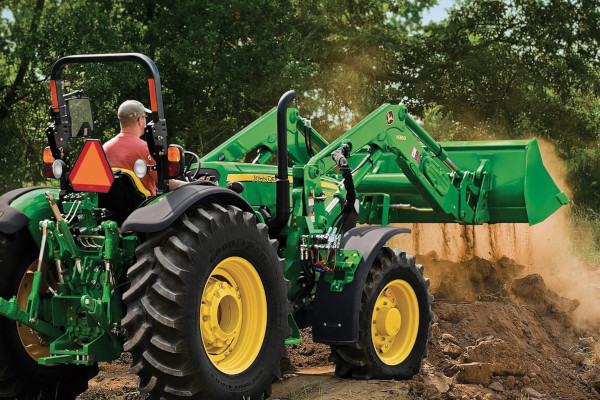

John Deere 540M

Double tap to zoom



Features

  • Single-point hydraulic connection saves time
  • Concealed oil lines improve appearance and reduce damage
  • Loader removal (parking) made easy
  • Boom lockout for easy service
  • False rod bucket cylinders improve productivity
  • Loader suspension system (LSS) to enhance the ride

Specifications

Key Specs

Maximum lift height (A) 3578 mm
141 in.
Lift capacity at full height Measured at pivot (U)
1373 kg
3027 lb
Boom breakout force Measured at pivot (Y)
2671 kg
Bucket rollback force capacity At ground-level line (ZZ)
3046 kg
Clearance at full height - bucket dumped (C) 2538 mm
100 in.
Dump angle, degrees (E) -74 degree (angle)
Rollback angle, degrees (G) 42 degree (angle)

Tractor

Model 6135E
Front tire 14.9R24
Rear tire 18.4R38
Front axle configuration MFWD
Wheelbase 2380 mm
94 in.
Pump capacity 75.7 L/min
20 gpm
Rated pressure 195 bar
2828 psi

Loader

Base weight 1028.2 kg
Leveling configuration Mechanical Self Leveling (MSL)
Bucket used Materials 1850 mm
Materials 73 in.
Bucket weight 246 kg
542 lb
Lift capacity at full height Measured at pivot (U)
1373 kg
3027 lb
Measured at 800 mm ahead of pivot (V)
1481 kg
Lift capacity at 59 in. (1500 mm) Measured at pivot (W)
2015 kg
Measured at 800 mm ahead of pivot (X)
1931 kg
Boom breakout force Measured at pivot (Y)
2671 kgf
Measured at 800 mm ahead of pivot (Z)
2325 kg
Bucket rollback force capacity At maximum height (VV)
1636 kg
At 59-in. (1500-mm) lift height (XX)
2986 kg
At ground-level line (ZZ)
3046 kg
Dimensions Maximum lift height (A)
3578 mm
141 in.
At full height - bucket level(B)
3383 mm
133 in.
At full height - bucket dumped (C)
2538 mm
100 in.
Overall length (I+F), ft (m) 4.8 m
15.8 ft
Overall height in carry position (J)
Digging depth (H) 47 mm
1.9 in.
Reach At maximum height (D)
1011 mm
39.8 in.
At ground level - bucket level (F)
2426 mm
95.5 in.
Bucket angle Dump angle, degrees (E)
-74 degree (angle)
Rollback angle, degrees (G)
42 degree (angle)
Dump angle, ground
-96 degree (angle)
Cycle times Loader raise, seconds
3.4 seconds
Loader lower, seconds
2.5 seconds
Bucket dump, seconds
2.1 seconds
Bucket rollback, seconds
2.1 seconds
