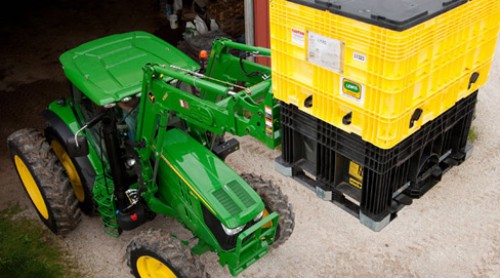

John Deere H360

John Deere H360 for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Row-Crop Tractor Loaders



  • Superior strength and visibility
  • For heavy-duty chores
  • Parking stands are integrated on the loader
Manufacturer John Deere
Model H360 MSL Loader on 6210R Tractor
Technical drawing
Technical drawing View diagram
Tractor
Model 6210R
Front tire 540/65R28
Rear tire 650/65R38
Front axle configuration ---
Wheelbase 2800 mm
  110 in.
Pump capacity, gpm 44 gpm
Rated pressure, psi 2900 psi
Loader
Leveling configuration ---
Bucket used 2150 Heavy-Duty Grapple
Bucket weight, lb (kg) 328 kg
  722 lb
Lift capacity at full height, lb (kg) ---
Measured at pivot (U) 1811 kg
  3984 lb
Measured at 500 mm ahead of pivot (V) ---
Measured at 800 mm ahead of pivot (V) 1984 kg
  4365 lb
Lift capacity at 59 in. (1500 mm), lb (kg) ---
Measured at pivot (W) 2684 kg
  5905 lb
Measured at 500 mm ahead of pivot (X) ---
Measured at 800 mm ahead of pivot (X) 2550 kg
  5610 lb
Boom breakout force, lbf (kgf) ---
Measured at pivot (Y) 3384 kg
  7445 lb
Measured at 500 mm ahead of pivot (Z) ---
Measured at 800 mm ahead of pivot (Z) 2992 kg
  6582 lb
Bucket rollback force capacity, lbf (kgf) ---
At maximum height (VV) 2457 kgf
  5405 lbf
At 59-in. (1500-mm) lift height (XX) 4929 kgf
  10844 lbf
At ground-level line (ZZ) 4846 kgf
  10661 lbf
Dimensions ---
Maximum lift height, in. (mm) (A) 4511 mm
  178 in.
Clearance ---
At full height - bucket level, in. (mm) (B) 4302 mm
  169 in.
At full height - bucket dumped, in. (mm) (C) 3447 mm
  136 in.
Overall length (I+F), ft (m) ---
Overall height in carry position, ft (m) (J) ---
Digging depth, in. (mm) (H) 40 mm
  2 in.
Reach ---
At maximum height, in. (mm) (D) 655 mm
  26 in.
At ground level - bucket level, in. (mm) (F) 2525 mm
  99 in.
Bucket angle ---
Dump angle, degrees (E) 65 degree (angle)
Rollback angle, degrees (G) 42 degree (angle)
Dump angle, ground 84 degree (angle)
Cycle times ---
Loader raise, seconds 2.48 seconds
Loader lower, seconds 1.51 seconds
Bucket dump, seconds 1.23 seconds
Bucket rollback, seconds 1.23 seconds
