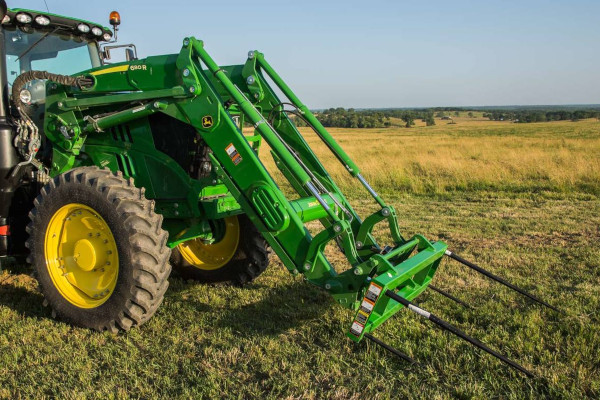

John Deere 680R

Double tap to zoom



Features

  • Save time with single-point hydraulic connection
  • Improve appearance and reduce damage with concealed oil lines
  • Easy loader removal using automatic mast latch
  • Easy service with boom lockout
  • Faster cycle time for mechanical self-leveling (MSL) Loaders using false rod cylinders
  • Further improve productivity with loader options

Specifications

Key Specs

Maximum lift height (A) 4480 mm
176 in.
Lift capacity at full height Measured at pivot (U)
2453 kg
5408 lb
Boom breakout force Measured at pivot (Y)
3411 kgf
7520 lbf
Bucket rollback force capacity At ground-level line (ZZ)
4336 kgf
9559 lbf
Clearance at full height - bucket dumped (C) 3465 mm
136 in.
Dump angle, degrees (E) 60 degree (angle)
Rollback angle, degrees (G) 48 degree (angle)

Tractor

Model 6175R/M, 6195R/M, 6215R
Front tire 600/70R28
Rear tire 650/85R38
Front axle configuration MFWD
Wheelbase 2800 mm
110 in.
Pump capacity 114 L/min
30.1 gpm
Rated pressure 200 bar
2900 psi

Loader

Base weight 1808.2 kg
Leveling configuration Mechanical Self Leveling (MSL)
Bucket used Heavy-duty grapple 2450 mm
Heavy-duty grapple 96 in.
Bucket weight 375 kg
826 lb
Lift capacity at full height Measured at pivot (U)
2453 kg
5408 lb
Measured at 800 mm ahead of pivot (V)
2431 kg
5359 lb
Lift capacity at 59 in. (1500 mm) Measured at pivot (W)
2989 kg
6590 lb
Measured at 800 mm ahead of pivot (X)
2821 kg
6219 lb
Boom breakout force Measured at pivot (Y)
3411 kgf
7520 lbf
Measured at 800 mm ahead of pivot (Z)
3001 kgf
6616 lbf
Bucket rollback force capacity At maximum height (VV)
3117 kgf
6872 lbf
At 59-in. (1500-mm) lift height (XX)
4486 kgf
9890 lbf
At ground-level line (ZZ)
4336 kgf
9559 lbf
Dimensions Maximum lift height (A)
4480 mm
176 in.
At full height - bucket level(B)
4240 mm
167 in.
At full height - bucket dumped (C)
3465 mm
136 in.
Overall length (I+F), ft (m) 5.5 m
17.9 ft
Digging depth (H) 96 mm
5 in.
Reach At maximum height (D)
1346 mm
53 in.
At ground level - bucket level (F)
2931 mm
115 in.
Bucket angle Dump angle, degrees (E)
60 degree (angle)
Rollback angle, degrees (G)
48 degree (angle)
Dump angle, ground
117 degree (angle)
Cycle times Loader raise, seconds
4.19 seconds
Loader lower, seconds
2.89 seconds
Bucket dump, seconds
1.81 seconds
Bucket rollback, seconds
1.81 seconds
