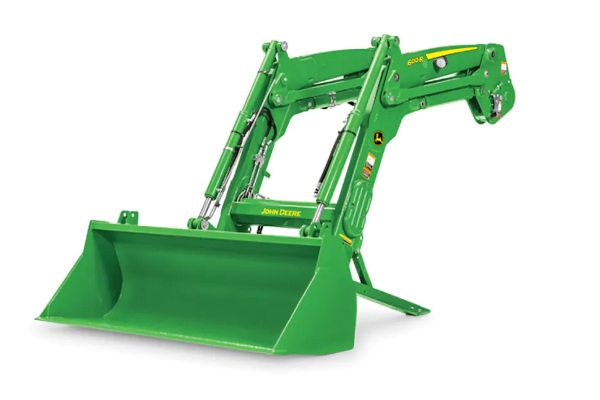

John Deere 600R

Double tap to zoom



Features

  • Ideal tractor-loader combination with model year 2020 6110M and 6120M Tractor compatibility
  • Save time with single-point hydraulic connection
  • Improve appearance and reduce damage with concealed oil lines
  • Easy loader removal using automatic mast latch
  • Easy service with boom lockout
  • Faster cycle time for mechanical self-leveling (MSL) Loaders using false rod cylinders
  • Further improve productivity with loader options

Specifications

Key Specs

Maximum lift height (A) 3900 mm
154 in.
Lift capacity at full height Measured at pivot (U)
1875 kg
4134 lb
Boom breakout force Measured at pivot (Y)
2665 kg
5875 lb
Bucket rollback force capacity At ground-level line (ZZ)
3902 kg
8602 lb
Clearance at full height - bucket dumped (C) 2887 mm
114 in.
Dump angle, degrees (E) -60 degree (angle)
Rollback angle, degrees (G) 40 degree (angle)

Tractor

Model 6110M, 6120M
Front tire 420/70R24
Rear tire 520/70R38
Wheelbase 2400 mm
94.5 in.
Pump capacity 80 L/min
21 gpm
Rated pressure 200 bar
2900.75 psi

Loader

Leveling configuration Mechanical self-leveling (MSL)
Bucket used Heavy duty
Bucket weight 281 kg
619.5 lb
Lift capacity at full height Measured at pivot (U)
1875 kg
4134 lb
Measured at 800 mm ahead of pivot (V)
1780 kg
3924 lb
Lift capacity at 59 in. (1500 mm) Measured at pivot (W)
2297 kg
5064 lb
Measured at 800 mm ahead of pivot (X)
2141 kg
4720 lb
Boom breakout force Measured at pivot (Y)
2665 kg
5875 lb
Measured at 800 mm ahead of pivot (Z)
2236 kg
4930 lb
Bucket rollback force capacity At maximum height (VV)
2548 kg
5617 lb
At 59-in. (1500-mm) lift height (XX)
4036 kg
8898 lb
At ground-level line (ZZ)
3902 kg
8602 lbf
Dimensions Maximum lift height (A)
3900 mm
154 in.
At full height - bucket level(B)
3660 mm
144 in.
At full height - bucket dumped (C)
2887 mm
114 in.
Overall length (I+F), ft (m) 4.89 m
16 ft
Digging depth (H) -160 mm
-6 in.
Reach At maximum height (D)
942 mm
154 in.
At ground level - bucket level (F)
2490 mm
98 in.
Bucket angle Dump angle, degrees (E)
-60 degree (angle)
Rollback angle, degrees (G)
48 degree (angle)
Dump angle, ground
-100 degree (angle)
Cycle times Loader raise, seconds
4.13 seconds
Loader lower, seconds
3.1 seconds
Bucket dump, seconds
2.58 seconds
Bucket rollback, seconds
2.58 seconds
