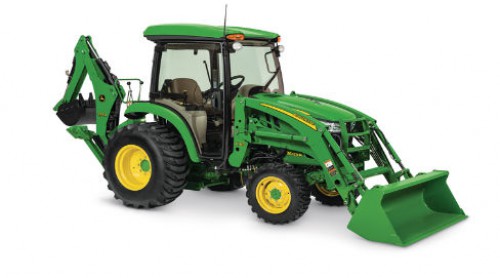

John Deere H160

John Deere H160 for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Compact Utility Tractor Loaders



  • Compatible with 3R Series Tractors
  • Quik-Park™ mounting system for efficient attachment and removal
  • Easy maintenance for increased uptime
  • 999 pounds (453 kg) lift capacity
Manufacturer John Deere
Model H160 on 3203 Tractor
Technical drawing
Technical drawing  View diagram
Tractor
Model  3203
Front tire  25X8.50-14 6PR R4
Rear tire  15.00-19.5 6PR R4
Front axle configuration  ---
Wheelbase  1727 mm
   68 in.
Pump capacity, gpm  8.5 gpm
Rated pressure, psi  2498 psi
Loader
Leveling configuration  ---
Bucket used  ---
Bucket weight, lb (kg)  93.8 kg
   206.8 lb
Lift capacity at full height, lb (kg)  ---
Measured at pivot (U)  607 kgf
   1338 lbf
Measured at 500 mm ahead of pivot (V)  448 kgf
   988 lbf
Measured at 800 mm ahead of pivot (V)  ---
Lift capacity at 59 in. (1500 mm), lb (kg)  ---
Measured at pivot (W)  760 kgf
   1676 lbf
Measured at 500 mm ahead of pivot (X)  586 kgf
   1292 lbf
Measured at 800 mm ahead of pivot (X)  ---
Boom breakout force, lbf (kgf)  ---
Measured at pivot (Y)  1290 kgf
   2844 lbf
Measured at 500 mm ahead of pivot (Z)  917 kgf
   2022 lbf
Measured at 800 mm ahead of pivot (Z)  ---
Bucket rollback force capacity, lbf (kgf)  ---
At maximum height (VV)  1209 kgf
   2665 lbf
At 59-in. (1500-mm) lift height (XX)  1506 kgf
   3320 lbf
At ground-level line (ZZ)  1174 kgf
   2588 lbf
Dimensions  ---
Maximum lift height, in. (mm) (A)  2259 mm
   89 in.
Clearance  ---
At full height - bucket level, in. (mm) (B)  2098 mm
   83 in.
At full height - bucket dumped, in. (mm) (C)  1741 mm
   69 in.
Overall length (I+F), ft (m)  3.5 m
   11.5 ft
Overall height in carry position, ft (m) (J)  ---
Digging depth, in. (mm) (H)  104 mm
   4 in.
Reach  ---
At maximum height, in. (mm) (D)  700 mm
   28 in.
At ground level - bucket level, in. (mm) (F)  1257 mm
   49 in.
Bucket angle  ---
Dump angle, degrees (E)  40 degree (angle)
Rollback angle, degrees (G)  22 degree (angle)
Dump angle, ground  ---
Cycle times  ---
Loader raise, seconds  2.68 seconds
Loader lower, seconds  1.64 seconds
Bucket dump, seconds  3.64 seconds
Bucket rollback, seconds  2.15 seconds
Date collected  ---
