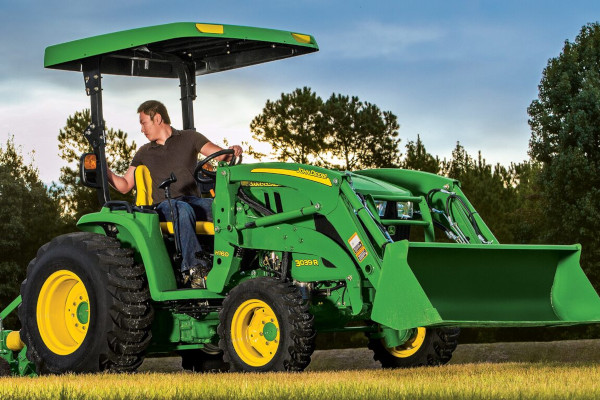

John Deere 300R

Double tap to zoom



Features

  • End-of-pin lubrication means easy maintenance
  • Quik-Park™ loader mounting system

Specifications

Key Specs

Maximum lift height (A) 2284 mm
90 in.
Lift capacity at full height Measured at pivot (U)
617 kg
1360 lb
Measured at 500 mm ahead of pivot (V)
453 kg
999 lb
Boom breakout force Measured at pivot (Y)
1295 kg
2855 lb
Measured at 500 mm ahead of pivot (Z)
922 kg
2032 lb
Bucket rollback force capacity At ground-level line (ZZ)
1188 kg
2619 lb
Clearance at full height - bucket dumped (C) 1743 mm
69 in.
Dump angle, degrees (E) 43 degree (angle)
Rollback angle, degrees (G) 25 degree (angle)

Tractor

Model 3120/3320/3520/3720/3033R/3039R/3046R
Front tire 7.00-14 6PR R1
Rear tire 11.2-24 6PR R1
Front axle configuration
Wheelbase 1727 mm
68 in.
Pump capacity 8.6 gpm
Rated pressure 2500 psi

Loader

Base weight 257.21 kg
Leveling configuration
Bucket used
Bucket weight 93.8 kg
207 lb
Lift capacity at full height Measured at pivot (U)
617 kg
1360 lb
Measured at 500 mm ahead of pivot (V)
453 kg
999 lb
Lift capacity at 59 in. (1500 mm) Measured at pivot (W)
771 kg
1700 lb
Measured at 500 mm ahead of pivot (X)
595 kg
1312 lb
Boom breakout force Measured at pivot (Y)
1295 kg
2855 lb
Measured at 500 mm ahead of pivot (Z)
922 kg
2032 lb
Bucket rollback force capacity At maximum height (VV)
1205 kg
2657 lb
At 59-in. (1500-mm) lift height (XX)
1518 kg
3347 lb
At ground-level line (ZZ)
1188 kg
2619 lb
Dimensions Maximum lift height (A)
2284 mm
90 in.
At full height - bucket level(B)
2123 mm
83.5 in.
At full height - bucket dumped (C)
1743 mm
69 in.
Overall length (I+F), ft (m) 3.122 m
10.24 ft
Overall height in carry position (J)
Digging depth (H) 76 mm
2.9 in.
Reach At maximum height (D)
773 mm
30.4 in.
At ground level - bucket level (F)
1381 mm
54.4 in.
Bucket angle Dump angle, degrees (E)
43 degree (angle)
Rollback angle, degrees (G)
25 degree (angle)
Cycle times Loader raise, seconds
2.76 seconds
Loader lower, seconds
1.69 seconds
Bucket dump, seconds
2.91 seconds
Bucket rollback, seconds
1.72 seconds
