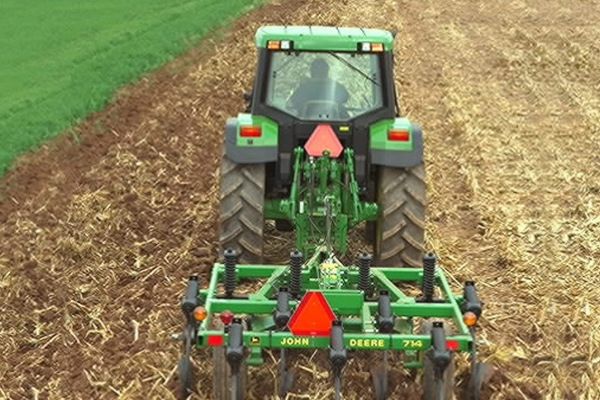

John Deere 714 Mulch TIller

714 Mulch TIller for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Double tap to zoom



Features

Three-bar frames offer strength

The three-bar frame:

  • Is constructed of three ranks of standards
  • Has strength to match higher horsepower tractors
  • Handles heavier residue levels



Three-bar frame models have these strength features:

  • One-piece welded construction
  • Solid steel in rear mainframe member
  • 102-mm x 102-mm (4-in. x 4-in.) cross members
  • 51-mm x 102-mm (2-in. x 4-in.) side members
  • 76-mm x 127-mm (3-in. x 5-in.) diagonal frame supports



Simple gang depth adjustment

The three-bar disk gang model features a mechanical depth adjustment:

  • Depth adjuster bolts (1) allow adjustment of individual gangs up or down within a 140-mm (5.5-in.) range.

An optional hydraulic depth adjustment (2) is available:

  • Allows on-the-go hydraulic adjustments to be made from the tractor seat
  • Gangs adjust up or down within a 140-mm (5.5-in.) range



Crank-adjust depth control available

The crank-adjust single-point depth control is standard equipment on all models and offers the following benefits:

  • More precise adjustment when changing the operating depth
  • Easy access at the front of the machine
  • Accurate, repeatable depth control



Choice of rigid, spring-reset, or Tru-Depth™ standards

Rigid standard (figure 1):
  • In base equipment on all models
  • 32 mm x 51 mm x 813 mm (1.25 in. x 2 in. x 32 in.)
  • Economical design is suited for fields having few obstructions
  • Till to a maximum depth of 279 mm (11 in.)
  • Good clearance to handle heavy trash
    • 813 mm (32 in.) of underframe clearance
    • 381-mm (15-in.) center-to-center spacing
Spring-reset 813-mm (32-in.) standard (figure 2):
  • Optional on all models
  • 32 mm x 51 mm x 813 mm (1.25 in. x 2 in. x 32 in.)
  • Suited for fields having rocks or other obstructions
  • Till to a maximum depth of 279 mm (11 in.)
  • Trip height of 254 mm (10 in.) for good clearance
  • 296-kg (650-lb) trip force
  • Automatically resets to the original working position after clearing an obstruction
  • Good clearance to handle heavy trash
    • 813 mm (32 in.) of underframe clearance
    • 381-mm (15-in.) center-to-center spacing
Tru-Depth standard (figure 3):
  • Optional on all models
  • 51 mm x 32 mm x 813 mm (2 in. x 1.25 in. x 32 in.)
  • Edge bent for extra strength
  • Designed to work in rocky ground and heavy draft conditions
  • Till to a maximum depth of 279 mm (11 in.)
  • Trip height of 279 mm (11 in.) for excellent clearance
  • 568-kg (1250-lb) trip force
  • Once an obstruction is cleared, the standard automatically returns to its original working position
  •  Excellent clearance to handle heavy trash
    • 813 mm (32 in.) of underframe clearance
    • 381-mm (15-in.) center-to-center spacing

Remaining residue cover

Typical percents of residue cover remaining are listed in the table. The percentages do not take into account variables such as the condition of the residue, speed and soil type.

JD 714Mulch Residue

Starting residue cover (percent) Remaining non-fragile* residue cover (percent)
  with 2-in. x 14--in shovel with 3-in. x 24--in shovel with 4-in. x 24--in shovel
100 65 55 50
90 55 50 45
80 50 45 40
70 45 38 35
60 40 33 30
50 32 27 25
40 25 22 20



Starting residue cover (percent) Remaining fragile** residue cover (percent)
  with 2-in. x 14--in shovel with 3-in. x 24--in shovel with 4-in. x 24--in shovel
100 45 40 35
90 40 35 30
80 35 30 28
70 30 28 25
60 27 25 20
50 22 20 17
40 18 15 14

*Non-fragile residue includes crops like corn, sorghum, wheat (more than 45 bu).
**Fragile residue includes crops like soybeans, edible beans, peas, wheat (under 45 bu), sunflower, peanuts, cotton.

Coulter gangs

Coulter blades are for use where little incorporation is desired or for erosion-prone areas where it is important to disturb as little residue as possible. Blades are on 229-mm (9-in.) spacing to reduce the chance of plugging.

  • Two-position blade down-pressure adjustment ensures consistent blade down pressure in light- or heavy-residue conditions.
  • Coulter gangs have rigid scraper bars.
  • Dura-Flex™ bearings and welded steel spools provide reliable performance and durability.
  • Gangs are spring-cushioned with 140 mm (5.5 in.) of vertical travel to provide protection against rocks or other obstructions.



Variety of ground-engaging tools available to match conditions

A variety of shovels are available to match conditions:

  • 76-mm x 610-mm (3-in. x 24-in.) concave twisted shovels for use in a wide range of average soil conditions are base equipment.
  • 102-mm x 610-mm (4-in. x 24-in.) concave twisted shovels for use in light, sandy soils or where greater fracturing between the standards is desired, are optional equipment.
  • 51-mm x 305-mm (2-in. x 12-in.) chrome carbide point chisel provides excellent strength and wear life in tough-to-penetrate conditions.



Long, narrow hitch for good maneuverability in tight headlands

The long narrow hitch design:

  • Allows good maneuverability in tight headlands
  • Is constructed of 51-mm x 127-mm (2-in. x 5-in.) steel tubing for strength
  • Heavy cast-steel hitch link for yoke-type drawbars is standard equipment
  • Hitch clevis is available for use with straight drawbars (not recommended for tractors over 150 engine hp)



A Level-lift™ linkage with easy turnbuckle leveling enables the mulch tiller to remain level whether in transport or in the field position.



A hitch jack is included with all models for storage and easier hookup to the tractor.

Specifications

Key Specs

Working width 2-bar 1.9-3.43 m
6.25-11.25 ft
Working width 3-bar 3.43-6.48 m
11.25-21.25 ft
Transport width 2.1-4.4 m
7-14.33 ft
Transport height 1.35-3.4 m
4.42-11 ft
Operating depth Inches
27.9 cm
11 in.
Miles per hour 8-11 km/h
5-7 mph
Horsepower per shank 8.95-14.9 kW
12-20 hp
Standard spacings Inches
38.1 cm
15 in.

Fold

Type Rigid: 3-section

Working width

Option 1 2-bar: 1.9 m
6.25 ft
Option 2 2-bar: 2.67 m
8.75 ft
Option 3 2-bar: 3.43 m
11.25 ft
Option 4 3-bar: 3.43 m
11.25 ft
Option 5 3-bar: 4.2 m
13.75 ft
Option 6 3-bar: 4.95 m
16.25 ft
Option 7 3-bar: 5.72 m
18.75 ft
Option 8 3-bar: 6.48 m
21.25 ft

Transport width

Option 1 2.1 m
7 ft
Option 2 2.67 m
8.75 ft
Option 3 3.7 m
12 ft
Option 4 3.7 m
12 ft
Option 5 4.3 m
14 ft
Option 6 5 m
16.5 ft
Option 7 4.4 m
14.33 ft
Option 8 4.4 m
14.33 ft

Transport height

Option 1 1.35 m
4.42 ft
Option 2 1.35 m
4.42 ft
Option 3 1.35 m
4.42 ft
Option 4 1.3 m
4.33 ft
Option 5 1.3 m
4.33 ft
Option 6 1.3 m
4.33 ft
Option 7 3.2 m
10.33 ft
Option 8 3.4 m
11 ft

Number of shanks - fold

Option 1 Rigid: 5-shank
Option 2 Rigid: 7-shank
Option 3 Rigid: 9-shank
Option 4 Rigid: 9-shank
Option 5 Rigid: 11-shank
Option 6 Rigid: 13-shank
Option 7 Folding: 15-shank
Option 8 Folding: 17-shank

Operating depth

Inches 27.9 cm
11 in.

Operating speed

Miles per hour 8-11 km/h
5-7 mph

Horsepower required

Horsepower per shank 8.95-14.9 kW
12-20 hp

Depth control

Options Single point on 3-bar machines

Hitch

Type Turnbuckle leveling adjustment: Tube: 51x127 mm
2x5 in.

Frame

Description Rigid frame: cross members: 102x102 mm
4x4 in.
Side members: 51x102 mm
2x4 in.
Diagonal frame supports: 76x127 mm
3x5 in.
Underframe clearance 81.3 cm
32 in.

Standard spacings

Inches 38.1 cm
15 in.

Standard options

Option 1 Spec
32x51x813 mm
1.25x2x32 in.

Rigid
Option 2 Spec
32x51x813 mm
1.25x2x32 in.
Trip clearance: 254 mm
10 in.
Trip force: 295 kg
650 lb
Trip force
295 kg
650 lb
Trip height
25.4 cm
10 in.
Spring-reset
Option 3 Spec
Edge bend: 51x32x813 mm
2x1.25x32 in.
Trip clearance: 279 mm
11 in.
Trip force: 567 kg
1,250 lb
Trip force
567 kg
1,250 lb
Trip height
27.9 cm
11 in.
Tru-Depth

Disk coulters/gangs

Description One set at front of machine
Type Disk or coulter
Blade size 50.8x0.65 cm
20x0.256 in.
On 2-bar: 0.45 cm
0.177 in.
Coulter size 50.8x0.5 cm
20x0.197 in.
Blade/coulter spacing 22.9 cm
9 in.
Type of scrapers Rigid bar
Type of protection Coil spring
Gang shaft 7.62x10.2 cm
3x4 in.

Wheels and tires

Option 1 Single wheel - 9.5L-15FI Load Range D (2-bar design)
Option 2 Single wheel 11L-15FI Load Range D (3-bar)
Option 3 Walking tandem - 9.5L-15FI Load Range D (3-bar)
Option 4 Walking tandem - 11L-15FI Load Range D (3-bar)
