John Deere S680 / NOT AVAILABLE

Double tap to zoom



  • Flexible cab options
  • High-performance S-Series cleaning system reduces slope sensitivity
  • ProDrive™ propulsion system automatically shifts between two speed ranges as ground conditions change
  • 400-bu (14,100-L) S-Series grain tank


Manufacturer John Deere

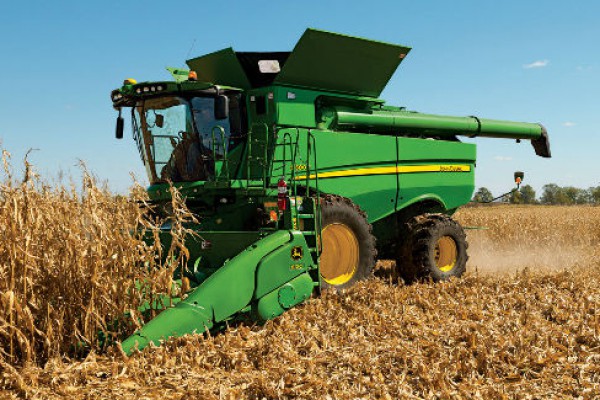

Model S680 S-Series Combine (2017)
Engine type  13.5 L
   824 cu in.
Emission level  Final Tier 4 / Tier 2 (Australia/New Zealand)
Rated speed  2,100 rpm
Rated power  353 kW
   473 hp
Power boost @ rated speed  37 kW
   50 hp
Fuel capacity  1,250 L
   330 gal.
Engine family
Drive type  Fixed or multi-speed
Conveyor chain slat type  Cast iron
Width  1,397 mm
   55 in.
Length  1,727 mm
   68 in.
Feed Accelerator, Stone Trap (FAST)  Standard
Reverser  Standard
Threshing/ Separating
Separator type  Rotary
Rotor length  3,124 mm
   123 in.
Rotor diameter  762 mm
   30 in.
Rotor speed range  210-1,000 rpm
Concave area  1.1 m2
   1,705 sq in.
Separating area  1.54 m2
   2,390 sq in.
Discharge grate area  0.45 m2
   698 sq in.
Front chaffer  0.5 m2
   801 sq in.
Front chaffer extension  0.8 m2
   1,224 sq in.
Chaffer  2.5 m2
   3,824 sq in.
Sieve area  2.1 m2
   3,255 sq in.
Total cleaning area (louvered)  5.9 m2
   9,145 sq in.
Cleaning fan speed  620-1,350 rpm
Grain handling
Grain tank size  14,100 L
   400 bu
Unloading auger length  6.9 or 7.9 m
   22.5 or 26 ft
Unloading rate  135 L/s
   3.8 bu/sec
Base weight - less head
Total machine  20,750 kg
   45,746 lb
Manufacturing location
Country  USA, East Moline, Illinois
