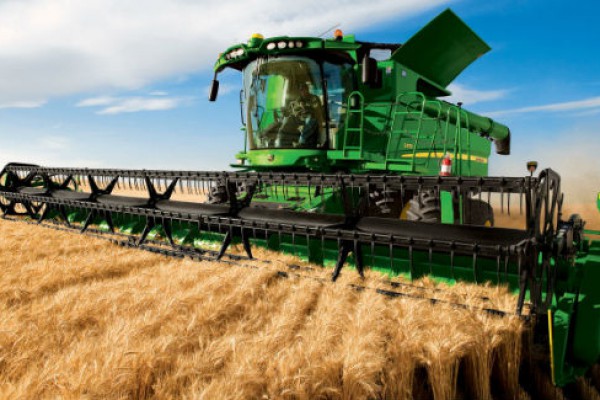

John Deere S670 / NOT AVAILABLE

Double tap to zoom



Features

  • Flexible cab options
  • High-performance S-Series cleaning system reduces slope sensitivity
  • ProDrive™ propulsion system automatically shifts between two speed ranges as ground conditions change
  • 300-bu (10,600-L) S-Series grain tank

Specifications

Model John Deere S670 Combine
ENGINE
Engine type 9.0 L (548 cu in.)
Emission level Final Tier 4 / Tier 2 (Australia/New Zealand)
Rated speed 2,200 rpm
Rated power 292/278 kW (391/373 hp)
Power boost @ rated speed 25 kW (34 hp)
Fuel capacity 950 L (250 gal.)
Engine family
FEEDING
Drive type Fixed or variable or multi-speed
Conveyor chain slat type Cast iron
Width 1,397 mm (55 in.)
Length 1,727 mm (68 in.)
Feed Accelerator, Stone Trap (FAST) Reverser Standard Standard
THRESHING/ SEPARATING
Separator type Rotary
Rotor length 3,124 mm (123 in.)
Rotor diameter 762 mm (30 in.)
Rotor speed range 210-1,000 rpm
Concave area 1.1 m (21,705 sq in.)
Separating area 1.54 m (22,390 sq in.)
Discharge grate area 0.36 m (2555 sq in.)
CLEANING
Front chaffer 0.5 m (2801 sq in.)
Front chaffer extension
Chaffer 2.5 m (23,824 sq in.)
Sieve area 2.1 m (23,255 sq in.)
Total cleaning area (louvered) 5.1 m (27,905 sq in.)
Cleaning fan speed 620-1,350 rpm
GRAIN HANDLING
Grain tank size 10,600 L (300 bu)
Unloading auger length 6.9 or 7.9 m (22.5 or 26 ft)
Unloading rate 116.3 L/s (3.3 bu/sec)
BASE WEIGHT - LESS HEAD
Total machine 18,950 kg (41,778 lb)
MANUFACTURING LOCATION
Country USA, East Moline, Illinois
ADDITIONAL INFORMATION
Date collected
