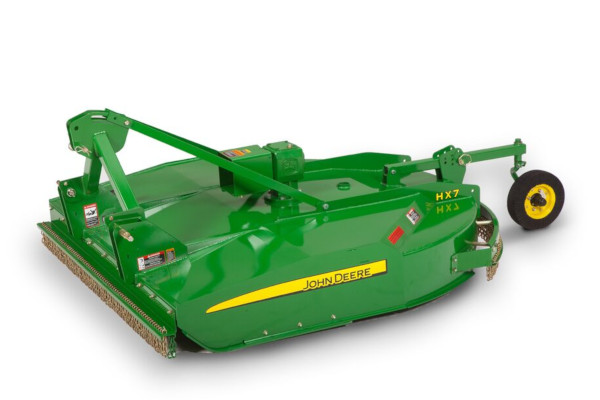

John Deere HX7

Double tap to zoom



Features

  • Double-Decker™ helps to maintain your cutter clean
  • Gearcases and blade holders provide better performance
  • Heavy-duty John Deere-designed gearcases
  • Deep-cutting chamber provides a better shredding action
  • Front and rear safety chains are standard for increased protection
  • Warranty

Specifications

Capacity

Cutting width 2,134 mm
84 in.
Cutting height 50 to 229 mm
2 to 9 in.
Cutting capacity 101.6 mm
4 in.
Cutting chamber Depth 300 mm
11.8 in.

Tractor compatibility

Tractor PTO HP range Minimum 34 kW
45 hp
Tractor PTO 540 rpm

Hitch

Type Lift-type
Category 2, 3N

Dimensions

Transport width 2,261 mm
89 in.
Deck shape Domed
Deck type Double decker
Deck thickness Upper
3 (11) mm
0.118 (11) in.
Lower
3.5 (10) mm
0.138 (10) in.
Side skirt thickness 6 (3) mm
0.25 (3) in.
Approx. weight 625 kg
1,378 lb

Drivelines

Size Main
ASAE Category 4
Protection Main
Non-seize, slip-clutch driveline

Gearcases

Number 1
HP rating
Center
Continuous 112 kW
150 hp
Peak 152 kW
205 hp

Blades

Thickness 13 mm
0.5 in.
Width 102 mm
4 in.
Type Single suction
Blade tip speed 540 RPM
4,751 m/min
15,586 fpm
285 km/h
177 mph
Material flow system Integrated
Holder Type
Round stump jumper (single suction) for protection of blades and carrier against obstruction damage

Wheels

Type Laminated

Shielding

Front Chain
Rear Chain
