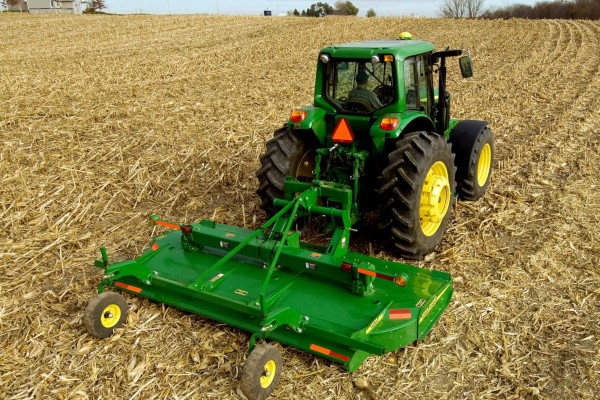

John Deere HX14
Heavy-Duty Rotary Cutters HX14
Overview:
HX14 gear-cases mount on heavy duty bowl supports. These are attached to the top and bottom decks with a single, uniform weld – a strong, long-lasting base of support for the gear-case and blade-holder.
Share This Product:
Features
- Larger, more durable gearboxes
- Large-diameter, round-pan blade holders
- Tractor hookup available
- Max Flow cutting chamber for a clean cut
Specifications
Capacity
| Cutting width | 4,200 mm 165 in. |
| Cutting height | 50 to 305 mm 2 to 12 in. |
| Cutting capacity | 76.2 mm 3 in. |
| Cutting chamber Depth | 257 mm 10.5 in. |
Tractor compatibility
| Tractor PTO HP range | Minimum PTO pull-type 45 kW 60 hp Minimum PTO lift-type 67 kW 90 hp |
| Tractor PTO | 1,000 rpm |
Hitch
| Type | Lift-Type, Pull-Type (Pull-Type has standard 10,000 lb; 4,536 kg, Safety Tow Chain) |
| Category | 2, 3, 3N |
Dimensions
| Transport width | 4,350 mm 171 in. |
| Overall width | 4,350 mm 171 in. |
| Overall length | 2,972 mm 117 in. |
| Deck shape | Domed |
| Deck type | Double decker |
| Deck thickness | Upper 3.5 (10) mm 0.141 (10) in. Lower 3.5 (10) mm 0.141 (10) in. |
| Side skirt thickness | 6 (3) mm 0.25 (3) in. |
| Approx. weight | 1,390 kg 3,059 lb |
Drivelines
| Size | Main ASAE Category 5; lift-type ASAE Category 4; pull-type Connecting ASAE Category 4 with Shear Bolt |
| Protection | Main Non-seize, slip-clutch driveline, pull-type has equal-angle Category 4 driveline Connecting Shock absorbing shafts |
Gearcases
| Number | 3 |
| HP rating | Transfer Continuous 119 kW 160 hp Peak 149 kW 200 hp Outer Continuous 75 kW 100 hp Peak 112 kW 150 hp |
Blades
| Thickness | Single suction 13 mm 0.5 in. Dual suction, upper 13 mm Dual suction, lower 13 mm |
| Width | Single suction 102 mm 4 in. Dual suction, upper 76.2 mm 3 in. Dual suction, lower 102 mm |
| Type | Single suction, dual suction |
| Overlap | 75 mm 2.95 in. |
| Blade tip speed | 1000 RPM 4,540 m/min 14,896 fpm 272 km/h 169 mph |
| Material flow system | Max flow |
| Holder | Type Single suction; stump jumper Dual suction; bar-type |
Wheels
| Type | Laminated (Pull-type has severe-duty Ag tire option) |
| Row width adjustment | Yes |
Shielding
| Front | Chain |
| Rear | Solid |
