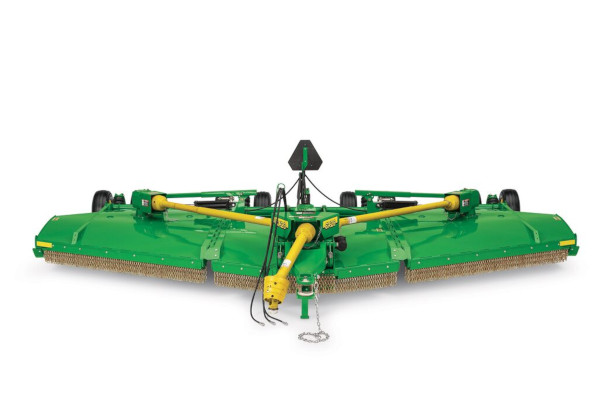

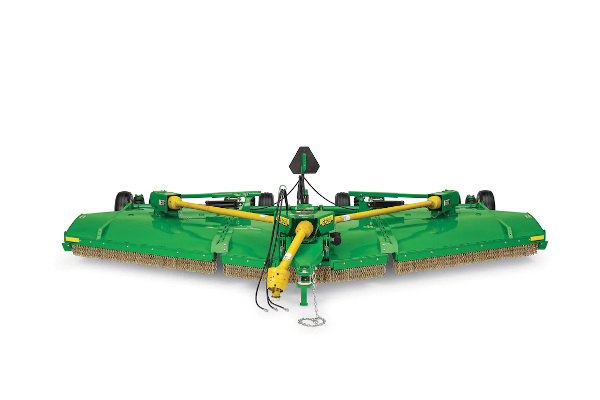

John Deere CX20

Double tap to zoom



Features

  • CX20 equipped with three deck rings
  • Gearcases and blade holders provide better performance
  • Flex-wing constant-velocity (CV) driveline is easy to attach
  • Four larger, more durable gearcases
  • CX ground-control suspension
  • Continuous and greaseable wing-frame hinges
  • Tight turns can be performed
  • Transport lock offers a safe wing-up position
  • Hydraulic height leveling system makes cutter leveling easy and safe
  • Five-year limited gearbox warranty provided on every John Deere rotary cutter

Specifications

Capacity

Cutting width 6,096 mm
240 in.
Cutting height For clearance over terraces 25-406 mm
1-16 in.
Cutting capacity (diameter) 101.6 mm
4 in.
Cutting chamber depth 267 mm
10.5 in.

Tractor compatibility

Tractor PTO HP range 55.92 kW
75 hp
Tractor PTO 1,000 rpm
Static Vert Drawbar Load Rating 1,200 kg
2,640 lb

Hitch

Type Pull-Type with ball-type self-leveling hitch clevis for easy hookup (Pull-Type has standard 10,000 lb (4,536 kg) Safety Tow Chain)
Hitch width For tight turn capability 570 mm
22.5 in.
Jackstand Stays vertical while raising or lowering

Dimensions

Transport width At wing wheels 3,400 mm
134 in.
Overall width 6,250 mm
246 in.
Overall length 5,760 mm
227 in.
Deck shape Easy clean dome-shaped top deck
Deck type Double-decker for superior strength
Deck thickness Upper
3.5 (10) mm
.138 (10) in.
Lower
3.5 (10) mm
.138 (10) in.
Shirt thickness 6 mm
.25 in.
Hinges Intermittent cast steel segments - greaseable; single 1-in. (2.5-cm) diameter full-length hinge pin
Approx. weight 3,350 kg
7,350 lb

Drivelines

Size Main
CV ASAE Category 5 splined telescoping profiles
Connecting
ASAE Category 5 splined telescoping profiles
Protection Main
No-seize, slip-clutch driveline
Connecting
No-seize, slip-clutch driveline

Gearcases

Number 4
HP rating Transfer
186 continuous / 224 peak kW
250 continuous / 300 peak hp
Center
112 continuous / 161 peak kW
150 continuous / 216 peak hp
Outer
112 continuous / 161 peak kW
150 continuous / 216 peak hp

Blades

Thickness 13 mm
.5 in.
Width 102 mm
4 in.
Type Suction or dual
Overlap 152 mm
6 in.
Blade rotation CW, CCW, CCW
Blade tip speed 1000 RPM
Wing 4,988 (299 km/h) m/min
16,364 (186 mph) fpm
Center 4,974 (298 km/h) m/min
16,319 (185 mph) fpm
Material flow system Smooth, obstruction free Max Flow cutting chamber for a clean cut and no windrows
Blade holder Type
Bar or stump jumper with standard deck rings

Hydraulics

Wing lift Standard, includes spring assist unfolding
Wing flex 90 up, 22 down degree (angle)

Wheels

Type
Option 2
5-bolt 26x9x14.5 'Fat Boy' Severe-Duty Ag Tires
Suspension Air cushion with shock absorbers on all 4 wheels standard
Row width adjustment Yes
Wing-leveling adjustment Easy adjust turnbuckle with bearing

Shielding

Front Chain
Rear Chain

Warranty

Gearboxes 5 years
