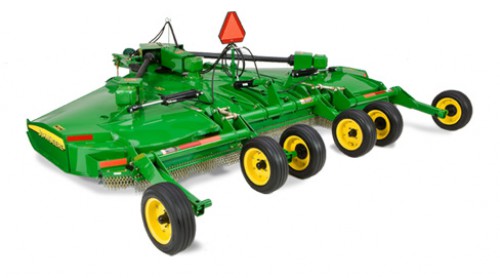

John Deere MX15
John Deere MX15 for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.
Medium-Duty Rotary Cutters
- Constant-velocity (CV) driveline
- Wings flex to follow any terrain
- Front and rear safety chains
- Standard lift and fold hydraulics
|Cutting width|| 4,572 mm
|Cutting height|| For clearance over terraces 76.2 to 355.6 mm
3 to 14 in.
|Cutting capacity (diameter)|| 50 mm
|Cutting chamber depth|| 267 mm
|Tractor PTO HP range|| 37 kW
|Tractor PTO||540 rpm|
|Static Vert Drawbar Load Rating|| 742 kg
|Type||Pull-type, with standard self-leveling hitch clevis (Pull-Type has standard 10,000 lb, 4,536 kg, Safety Tow Chain)|
|Hitch width|| For tight turn capability 570 mm
|Jackstand||Hydraulic parking stand|
|Transport width|| At wing wheels 2,800 mm
|Overall width|| 4,726 mm
|Overall length|| 4,932 mm
|Deck shape||Easy-clean, dome-shaped top deck|
|Deck type||Double-decker design; superior strength|
|Upper|| 3 (11) mm
.119 (11) in.
|Lower|| 3.4 (10) mm
.134 (10) in.
|Shirt thickness|| 6.3 (3) mm
.25 (3) in.
|Hinges||Intermittent cast steel segments - greaseable; single 1-in. (2.5-cm) diameter full-length hinge pin|
|Approx. weight|| 1,915 kg
|Main||CV ASAE Category 5 tubular telescoping star profiles|
|Connecting||ASAE Category 4 tubular telescoping 2-lobe profiles|
|Main||No-seize, slip-clutch driveline|
|Connecting||No-seize, slip-clutch driveline|
|Transfer|| 186 continuous / 224 peak kW
250 continuous / 300 peak hp
|Center|| 55.1 continuous / 75 peak kW
75 continuous / 100 peak hp
|Outer|| 55.1 continuous / 75 peak kW
75 continuous / 100 peak hp
|Thickness|| 13 Single suction mm
.5 Single suction in.
|Width|| Single suction 102 mm
|Overlap|| 152 mm
|Blade rotation||CW, CCW, CCW|
|Blade tip speed||---|
|540 RPM|| Outer 5,267 (315 km/h) m/min
17,281 (196 mph) fpm
Center 5,194 (312 km/h) m/min
17,040 (194 mph) fpm
|Material flow system||Smooth, obstruction-free Max Flow cutting chamber for a clean cut and no windrows|
|Wing flex, degrees||90 up, 22 down degree (angle)|
|Option 1||4-bolt 21x7x12 16 PR Severe-Duty Ag Tires|
|Row width adjustment||---|
|Wing-leveling adjustment||Easy-adjust turnbuckle with bearing|
