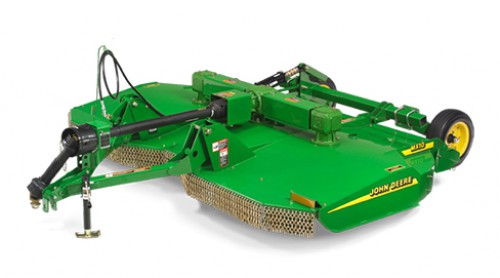

John Deere MX10

John Deere MX10 for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Medium-Duty Rotary Cutters



  • Industry-exclusive Double-Decker™ frame design
  • Standard stump jumper blade holder
  • 5-year limited gearbox warranty
  • Front & rear safety chain shields



Manufacturer John Deere
Model MX10
Capacity
Cutting width  3,200 mm
126 in.
Cutting height  25 to 305 mm
 1 to 12 in.
Cutting capacity (diameter)  50 mm
 2 in.
Cutting chamber Depth  216 mm
 8.5 in.
Tractor compatibility
Tractor PTO HP range  Minimum PTO; pull-type, semi-mount, semi-mount hydraulic offset 30 kW
 40 hp
 Minimum PTO; lift-type 45 kW
 60 hp
Tractor PTO  540 rpm
Hitch
Type  Pull-type, lift-type, semi-mount, semi-mount hydraulic offset (Pull-type has standard 10,000 lb; 4,536 kg, safety tow chain)
Category  2, 3, 3N
Dimensions
Transport width  3,280 mm
 129 in.
Overall width  3,280 mm
 129 in.
Overall length  4,040 mm
 159 in.
Deck shape  Domed
Deck type  Double decker
Deck thickness  ---
Upper  3 (11) mm
 0.125 (11) in.
Lower  3 (11) mm
 0.125 (11) in.
Side skirt thickness  4.5 (7) mm
 0.177 (7) in.
Approx. weight  960 kg
 2,113 lb
Drivelines
Size  ---
Main  ASAE Category 4
Connecting  ---
Protection  ---
Main  Non-seize, slip-clutch driveline, pull-type has equal-angle Category 4 driveline
Connecting  Shock absorbing shafts
Gearcases
Number  3
HP rating  ---
Transfer  Continuous 89 kW
 120 hp
 Peak 97 kW
 130 hp
Center  ---
Outer  Continuous 56 kW
 75 hp
 Peak 75 kW
 100 hp
Blades
Thickness  13 mm  0.5 in.
Width  102 mm  4 in.
Type  Suction
Overlap  75 mm  2.95 in.
Blade tip speed  ---
540 RPM  4,961 m/min
 16,275 fpm
 298 km/h
 185 mph
1000 RPM  ---
Material flow system  Max flow
Holder  ---
Type  Round stump jumper
Wheels
Type  Laminated (Pull-type has severe-duty Ag tire option)
Row width adjustment  Yes, pull-type only
Shielding
Front  Chain
Rear  Chain
