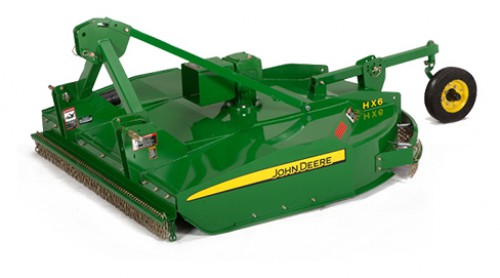

John Deere HX6

John Deere HX6 for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Heavy-Duty and Commercial Rotary Cutters



  • Gearcases and blade holders provide better performance
  • Deep-cutting chamber provides a better shredding action
  • Front and rear safety chains are standard for increased protection
Manufacturer John Deere
Model HX6
Capacity
Cutting width  1,829 mm
 72 in.
Cutting height  50 to 229 mm
 2 to 9 in.
Cutting capacity (diameter)  101.6 mm
 4 in.
Cutting chamber Depth  300 mm
 11.8 in.
Tractor compatibility
Tractor PTO HP range  Minimum 30 kW
 40 hp
Tractor PTO  540 rpm
Hitch
Type  Lift-type
Category  2, 3N
Dimensions
Transport width  1,956 mm
 77 in.
Overall width  ---
Overall length  ---
Deck shape  Domed
Deck type  Double decker
Deck thickness  ---
Upper  3 (11) mm
 0.118 (11) in.
Lower  3.5 (10) mm
 0.138 (10) in.
Side skirt thickness  6 (3) mm
 0.25 (3) in.
Approx. weight  584 kg
 1,208 lb
Drivelines
Size  ---
Main  ASAE Category 4
Connecting  ---
Protection  ---
Main  Non-seize, slip-clutch driveline
Connecting  ---
Gearcases
Number  1
HP rating  ---
Transfer  ---
Center  150 hp
 Continuous 112 kW
 Peak 152 kW
 205 hp
Outer  ---
Blades
Thickness  13 mm
 0.5 in.
Width  102 mm
 4 in.
Type  Single suction
Overlap  ---
Blade tip speed  ---
540 RPM  4,751 m/min
 15,586 fpm
 285 km/h
 177 mph
1000 RPM  ---
Material flow system  Integrated
Holder  ---
Type  Round stump jumper (single suction) for protection of blades and carrier against obstruction damage
Wheels
Type  Laminated
Row width adjustment  ---
Shielding
Front  Chain
Rear  Chain
