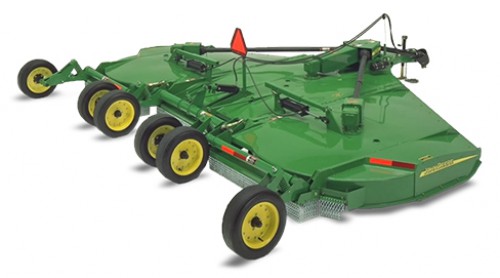

John Deere HX20

John Deere HX20 for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Heavy-Duty and Commercial Rotary Cutters


  • Superior four-gearcase design
  • Gearcases and blade holders for better performance
  • Domed shape and smooth top deck is easy to clean
  • Safety tow chains for extra support


Manufacturer John Deere
Model HX20
Cutting width  6,096 mm
 240 in.
Cutting height  For clearance over terraces 25 to 406 mm
 1 to 16 in.
Cutting capacity (diameter)  76.2 mm
 3 in.
Cutting chamber depth  267 mm
 10.5 in.
Tractor compatibility
Tractor PTO HP range  56 kW
 75 hp
Tractor PTO  540 or 1,000 rpm
Static Vert Drawbar Load Rating  1,165 kg
 2,560 lb
Type  Pull-type, with standard self-leveling hitch clevis (Pull-Type has standard 10,000 lb, 4,536 kg, Safety Tow Chain)
Category  ---
Hitch width  For tight turn capability 570 mm
 22.5 in.
Jackstand  Stays vertical while raising/lowering
Transport width  3,400 mm
 134 in.
Overall width  6,250 mm
 246 in.
Overall length  5,760 mm
 227 in.
Deck shape  Easy-clean, dome-shaped top deck
Deck type  Double-decker design for superior strength
Deck thickness  ---
Upper  3 (11) mm
.118 (11) in.
Lower  3.5 (10) mm
.138 (10) in.
Shirt thickness  6 mm
 .25 in.
Hinges  Intermittent cast steel segments - greaseable; single 1-in. (2.5-cm) diameter full-length hinge pin
Approx. weight  3,050 kg
 6,710 lb
Size  ---
Main  CV ASAE Category 5 splined telescoping profiles
Connecting  ASAE Category 4 splined telescoping profiles
Protection  ---
Main  No-seize, slip-clutch driveline
Connecting  No-seize, slip-clutch driveline
Number  4
HP rating  ---
Transfer  186 continuous / 224 peak kW
 250 continuous / 300 peak hp
Center  112 continuous / 153 peak kW
 150 continuous / 205 peak hp
Outer  112 continuous / 153 peak kW
 150 continuous / 205 peak hp
Thickness  13 mm
 .5 in.
Width  102 mm
 4 in.
Type  Suction, dual suction
Overlap  152 mm
 6 in.
Blade rotation  CW, CCW, CCW
Blade tip speed  ---
540 RPM  Wing 4,903 (295 km/h) m/min
 16,087 (183 mph) fpm
 Center 4,914 (295 km/h) m/min
 16,122 (183 mph) fpm
1000 RPM  Wing 4,988 (299 km/h) m/min
 16,364 (186 mph) fpm
 Center 4,974 (298 km/h) m/min
 16,319 (185 mph) fpm
Material flow system  Smooth, obstruction-free Max Flow cutting chamber for a clean cut and no windrows
Blade holder  ---
Diameter  ---
Type  Bar or stump jumper for protection of blades and carrier against obstruction damage
Wing lift  Standard, includes spring-assist unfolding
Wing flex, degrees  90 up, 22 down degree (angle)
Type  ---
Option 1  ---
Option 2  4-bolt 21x7x12 16 PR Severe-Duty Ag Tires
Suspension  Spring suspension on all 4 wheels standard
Row width adjustment  Yes
Wing-leveling adjustment  Easy-adjust turnbuckle with bearing
Front  Chain
Rear  Chain
Gearboxes  5 years
