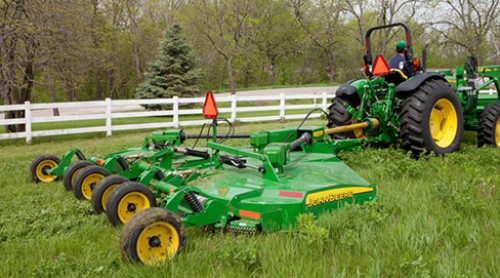

John Deere HX15

John Deere HX15 for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Heavy-Duty and Commercial Rotary Cutters


  • More durable gearboxes
  • Flex-wing CV driveline
  • Heavy-duty axle with spring suspension
  • Safety tow chains for extra support



Model HX15
Cutting Width, in. (mm) 180 in.
  4572 mm
Cutting Height, in. (mm) 1 to 16 for clearance over terraces in.
  25 to 406 for clearance over terraces mm
Cutting Capacity (diameter), in. (mm) 3 in.
  76.2 mm
Cutting Chamber Depth, in. (mm) 10.5 in.
  267 mm
Tractor Compatibility
Tractor PTO HP Range 55+ hp
  41+ kW
Tractor PTO 540 or 1000 PTO
Static Vert Drawbar Load Rating, lb.(kg) 1960 lb
  890 kg
Type Pull-type, with standard self-leveling hitch clevis (Pull-Type has standard 10,000 lb Safety Tow Chain)
Category ---
Hitch Width, in. (mm) 22.5 for tight turn capability in.
  570 for tight turn capability mm
Jackstand Hydraulically operated; stays vertical while raising/lowering (optional manual jackstand kit available)
Transport Width, in. (mm) 110 at wing wheels in.
  2800 at wing wheels mm
Overall Width, in. (mm) 183 in.
  4726 mm
Overall Length, in. (mm) 194 in.
  4932 mm
Deck Shape Easy-clean, dome-shaped top deck
Deck Type Double-decker design; superior strength
Deck Thickness, in. (gauge) (mm) ---
Upper .118 (11) in.
  3 (11) mm
Lower .138 (10) in.
  3.5 (10) mm
Shirt Thickness, in. (mm) 0.25 in.
  6 mm
Hinges Intermittent cast steel segments - greaseable; single 1-in. diameter full-length hinge pin
Approx. Weight, lb. (kg) 5250 lb
  2386 kg
Size ---
Main CV ASAE Category 5 tubular telescoping star profiles
Connecting ASAE Category 4 tubular telescoping star profiles
Protection ---
Main No-seize, self-adjusting slip clutches
Connecting No-seize, self-adjusting slip clutches
Number 4
HP Rating ---
Transfer 250 continuous / 300 peak hp
  186 continuous / 224 peak kW
Center 150 continuous / 205 peak hp
  112 continuous / 153 peak kW
Outer 150 continuous / 205 peak hp
  112 continuous / 153 peak kW
Thickness, in. (mm) .5 Single suction / .5 Dual suction-upper - .5 Dual suction-lower in.
  13 Single suction) / 13 Dual suction-upper - 13 Dual suction-lower mm
Width, in. (mm) 4 Single suction / 3 Dual suction-upper - 4 Dual suction-lower in.
  102 Single suction / 76.2 Dual suction-upper - 102 Dual suction-lower mm
Type Single suction, Dual suction
Overlap, in. (mm) 6 in.
  152 mm
Blade Rotation CW, CCW, CCW
Blade Tip Speed, ft./min. (m/s) ---
540 RPM Wing - 15,586 ft/min. / 177 mph ; Center - 15,728 ft/min. / 179 mph
  Wing - 79.2 ; Center - 79.9 m/s
1000 RPM Wing - 15,837 ft/min. / 180 mph ; Center - 15,256 ft/min. / 173.4 mph
  Wing - 80.5 ; Center - 77.5 m/s
Material Flow System Smooth, obstruction-free Max Flow cutting chamber for a clean cut and no windrows
Blade Holder ---
Diameter, in. (mm) ---
Type Bar Type (Dual suction) or Round Stumpjumper (Single suction) for protection of blades and carrier against obstruction damage
Wing Lift Standard, includes spring-assist unfolding
Wing Flex, degrees 90 up, 22 down degree (angle)
Type ---
Option 1 4-bolt 21x5.25x9.0 Laminated Tires
Option 2 4-bolt 21x7x12 16 PR Severe-Duty Ag Tires
Suspension Spring suspension (4x8-in. coil spring) on all 4 wheel standards
Row Width Adjustment Yes
Wing Leveling Adjustment Easy-adjust turnbuckle with bearing
Front Chain
Rear Chain
Gearboxes 5 years
