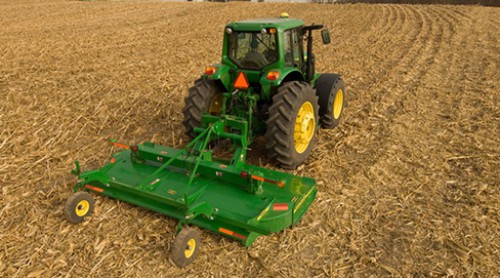

John Deere HX14

John Deere HX14 for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Heavy-Duty and Commercial Rotary Cutters


  • Larger, more durable gearboxes
  • Large-diameter, round-pan blade holders
  • Tractor hookup available
  • Max Flow cutting chamber for a clean cut


Manufacturer John Deere
Model HX14
Cutting width  4,200 mm
 165 in.
Cutting height  50 to 305 mm
 2 to 12 in.
Cutting capacity (diameter)  76.2 mm
 3 in.
Cutting chamber Depth  257 mm
 10.5 in.
Tractor compatibility
Tractor PTO HP range  Minimum PTO pull-type 45 kW
 60 hp
 Minimum PTO lift-type 67 kW
 90 hp
Tractor PTO  1,000 rpm
Type  Lift-Type, Pull-Type (Pull-Type has standard 10,000 lb; 4,536 kg, Safety Tow Chain)
Category  2, 3, 3N
Transport width  4,350 mm
 171 in.
Overall width  4,350 mm
 171 in.
Overall length  2,972 mm
 117 in.
Deck shape  Domed
Deck type  Double decker
Deck thickness  ---
Upper  3.5 (10) mm
 0.141 (10) in.
Lower  3.5 (10) mm
 0.141 (10) in.
Side skirt thickness  6 (3) mm
 0.25 (3) in.
Approx. weight  1,390 kg
 3,059 lb
Size  ---
Main  ASAE Category 5; lift-type
 ASAE Category 4; pull-type
Connecting  ASAE Category 4 with Shear Bolt
Protection  ---
Main  Non-seize, slip-clutch driveline, pull-type has equal-angle Category 4 driveline
Connecting  Shock absorbing shafts
Number  3
HP rating  ---
Transfer  Continuous 119 kW
160 hp
 Peak 149 kW
 200 hp
Center  ---
Outer  Continuous 75 kW
 100 hp
 Peak 112 kW
 150 hp
Thickness  Single suction 13 mm
 0.5 in.
 Dual suction, upper 13 mm
 Dual suction, lower 13 mm
Width  Single suction 102 mm
 4 in.
 Dual suction, upper 76.2 mm
 3 in.
 Dual suction, lower 102 mm
Type  Single suction, dual suction
Overlap  75 mm
   2.95 in.
Blade tip speed  ---
540 RPM  ---
1000 RPM  4,540 m/min
 14,896 fpm
 272 km/h
 169 mph
Material flow system  Max flow
Holder  ---
Type  Single suction; stump jumper
 Dual suction; bar-type
Type  Laminated (Pull-type has severe-duty Ag tire option)
Row width adjustment  Yes
Front  Chain
Rear  Solid
