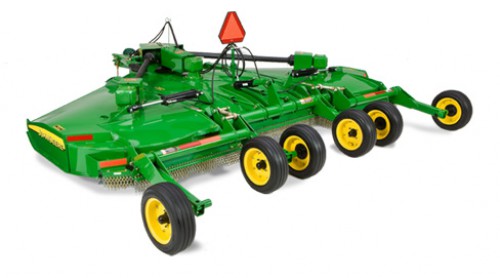

John Deere HX10

John Deere HX10 for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Heavy-Duty and Commercial Rotary Cutters


  • Larger, more durable gearboxes
  • Large-diameter, round-pan blade holders
  • Tractor hookup available
  • Max Flow cutting chamber for a clean cut


Manufacturer John Deere
Model HX10
Cutting Width, in. (mm) 126 (3200)
Cutting Height, in. (mm) 1 to 12 (25 to 305)
Cutting Capacity (diameter), in. (mm) 3 (76.2)
Cutting Chamber Depth, in. (mm) 10.5 (267)
Tractor Compatibility
Tractor PTO HP Range Minimum 50 (Pull-Type) / Minimum 80 (Lift-Type)
Tractor PTO 540
Type Lift-Type, Pull-Type (Pull-Type has standard 10,000 lb Safety Tow Chain)
Category 2, 3, 3N
Transport Width, in. (mm) 132 (3350)
Overall Width, in. (mm) 132 (3350)
Overall Length, in. (mm) 159 (4040)
Deck Shape Domed
Deck Type Double Decker
Deck Thickness, in. (gauge) (mm) ---
Upper .141 (10) (3.5)
Lower .141 (10) (3.5)
Side Skirt Thickness, in. (gauge) (mm) .25 (3) (6)
Approx. Weight, lb. (kg) 2326 (1057)
Size ---
Main ASAE Category 5 (Lift-Type) / ASAE Category 4 (Pull-Type)
Connecting ---
Protection ---
Main Non-seize, self-adjusting clutch; Pull-Type has equal-angle Category 4 driveline
Connecting Shock Absorbing Shafts
Number 3
HP Rating ---
Transfer 120 hp (89.4 kW) continuous / 180 hp (134 kW) peak
Center ---
Outer 100 hp (75 kW) continuous / 140 hp (104 kW) peak
Thickness, in. (mm) .5 (13)
Width, in. (mm) 4 (102)
Type Suction
Overlap, in. (mm) 2.8 (75)
Blade Tip Speed, ft./min. (m/s) ---
540 RPM 16,889 (85.8) / 192 mph
1000 RPM ---
Material Flow System Max Flow
Holder ---
Type Round Stumpjumper
Type Laminated (Pull-Type has Severe-Duty Ag tire option)
Row Width Adjustment Yes
Front Chain
Rear Chain
