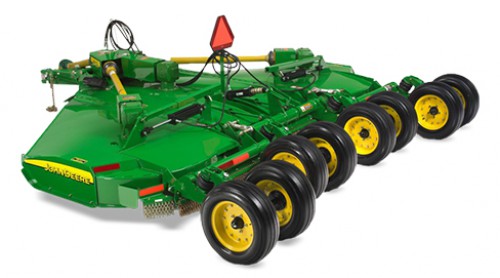

John Deere CX15

John Deere CX15 for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Heavy-Duty and Commercial Rotary Cutters


  • More durable gearboxes
  • Flex-wing CV driveline
  • Easy-clean
  • Safety tow chains for extra support


Manufacturer John Deere
Model CX15
Cutting width  4,572 mm
 180 in.
Cutting height  For clearance over terraces: 25 to 406 mm
 1 to 16 in.
Cutting capacity (diameter)  102 mm
 4 in.
Cutting chamber depth  267 mm
 10.5 in.
Tractor compatibility
Tractor PTO HP range  41 kW
 55 hp
Tractor PTO  540 or 1,000 rpm
Static Vert Drawbar Load Rating  960 kg
 2,115 lb
Type  Pull-Type with ball-type self-leveling hitch clevis for easy hookup (Pull-Type has standard 10,000 lb, 4,536kg, Safety Tow Chain)
Category  ---
Hitch width  For tight turn capability 570 mm
 22.5 in.
Jackstand  Hydraulically operated; stays vertical while raising/lowering (optional manual jackstand kit available)
Transport width  At wing wheels 2,800 mm
 110 in.
Overall width  4,726 mm
 183 in.
Overall length  4,932 mm
 194 in.
Deck shape  Easy clean dome-shaped top deck
Deck type  Double decker for superior strength
Deck thickness  ---
Upper  3.5 (10) mm
 .138 (10) in.
Lower  4.5 (7) mm
 .177 (7) in.
Shirt thickness  6 mm
 0.25 in.
Hinges  Intermittent cast steel segments - greaseable; single 1-in. (2.5 cm) diameter full-length hinge pin
Approx. weight  2,568 kg
 5,650 lb
Size  ---
Main  CV ASAE Category 5, splined telescoping profiles
Connecting  ASAE Category 5, splined telescoping profiles
Protection  ---
Main  No-seize, slip-clutch driveline
Connecting  No-seize, slip-clutch driveline
Number  4
HP rating  ---
Transfer  186 continuous / 224 peak kW
 250 continuous / 300 peak hp
Center  112 continuous / 161 peak kW
 150 continuous / 216 peak hp
Outer  112 continuous / 161 peak kW
 150 continuous / 216 peak hp
Thickness  13 mm
 0.5 in.
Width  102 mm
 4 in.
Type  Suction or offset
Overlap  152 mm
 6 in.
Blade rotation  CW, CCW, CCW
Blade tip speed  ---
540 RPM  Wing 4,751 (285 km/h) m/min
 15,586 (177 mph) fpm
 Center 4,794 (288 km/h) m/min
 15,728 (179 mph) fpm
1000 RPM  Wing 4,827 (290 km/h) m/min
 15,837 (180 mph) fpm
 Center 4,650 (278 km/h) m/min
 15,256 (173 mph) fpm
Material flow system  Smooth, obstruction-free Max Flow cutting chamber for a clean cut and no windrows
Blade holder  ---
Diameter  ---
Type  Round stump jumper and standard deck rings for maximum protection of blades and blade carrier against obstruction damage
Wing lift  Standard; includes spring assist unfolding
Wing flex, degrees  90 up, 22 down degree (angle)
Type  ---
Option 1  5-bolt 26x9x14.5 24-Ply Severe-Duty Ag
Option 2  ---
Suspension  Air cushion with shock absorbers on all 4 wheels standard
Row width adjustment  Yes
Wing-leveling adjustment  Easy adjust turnbuckle with bearing
Front  Chain
Rear  Chain
Gearboxes  Five years
