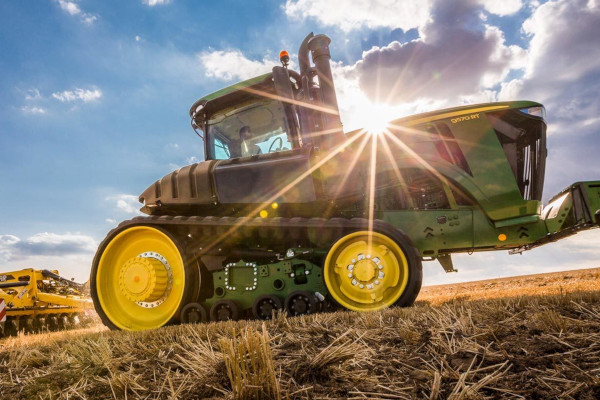

John Deere 9570RT

Double tap to zoom



Features

  • Cummins® X15 (15-L [912 cu in] displacement) engine
  • Standard CommandView™ III cab offers unsurpassed amenities
  • 9R/9RT e18™ with Efficiency Manager™
  • JDLink™ services and Service ADVISOR™ diagnostic systems
  • Power take-off (PTO), 1-3/4 1000 rpm
  • 3-point hitch and CommandCenter™ controls boost productivity
  • High-flow hydraulics, 435-L/min (115-gpm) system
  • General maintenance
  • e18™ PowerShift™ transmission with Efficiency Manager™ feature



Specifications

Model John Deere 9570RT Tractor
DRIVELINE
Engine Manufacturer Cummins
Engine Model QSX15
Emission Rating Tier 4
Number Of Cylinders 6
Cylinder Liner Type Wet Sleeve
Bore, mm (inches) 137 mm (5.39 in)
Stroke, mm (inches) 169 mm (6.65 in)
Displacement, ltr (Inches³) 14.9 (912)
Engine Output, kW (hp) 419 kW (570 hp)
Transmission PowerShift
Number Of Speeds - Forward 18
Number Of Speeds - Reverse 6
Steering Differential Steer - Track
Planetaries Outboard
Front Axle Suspension AirCushion Suspension
Service Brake Type Wet disc
Service Brake Actuation Hydraulic
DIMENSIONS
Overall Length, mm (ft/in) 6020 (19 ft 9 in)
Height Over Cab, mm (ft/in) 3393 (11 ft 2 in)
Overall Width, mm (ft/in) 3454 (11 ft 4 in)
Wheelbase, mm (ft/in) 2956 (9 ft 8 in)
Ground Clearance, mm (inches) 345 mm (14 in)
CAPACITIES
Fuel Tank, ltr (gallons (US)) 1324 (350 gals)
PERFORMANCE
Pump Flow, lt/min (gallons (US) / min) 435 (115 gals)
System Pressure, bar (PSI) 200 (2900 PSI)
Number Of Control Valves 4
Additional Optional Control Valves 2
Flow Available To One Control Valve, lt/min (gallons (US) / min) 159 (42)
Open Or Closed Centre Closed Centre
WEIGHTS
Operating Weight, kg (lbs) 20412 kg (45000 lbs)
