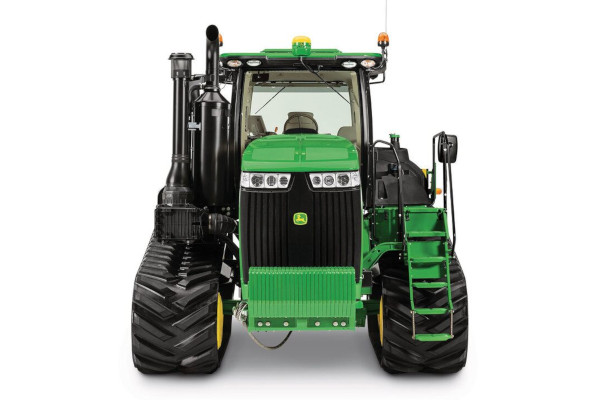

John Deere 9470RT

Double tap to zoom



Features

  • Engine, PowerTech™ PSS 13.5L (824 cu. in.) external efficiency, performance features
  • Standard CommandView™ III cab offers unsurpassed amenities
  • 9R/9RT e18™ with Efficiency Manager™
  • JDLink™ services and Service ADVISOR™ diagnostic systems
  • Power take-off (PTO), 1-3/4 1000 rpm
  • 3-point hitch and CommandCenter™ controls boost productivity
  • High-flow hydraulics, 435-L/min (115-gpm) system
  • General maintenance
  • e18™ PowerShift™ transmission with Efficiency Manager™ feature

Specifications

Manufacturer John Deere
Model 9470 RT Scraper Special Tier 4 Final
DRIVELINE
Engine Manufacturer John Deere
Engine Model PowerTech PSS 13.5L
Number Of Cylinders 6
Cylinder Liner Type Wet Sleeve
Bore, mm (inches) 132 (5.2)
Stroke, mm (inches) 165 (6.5)
Displacement, ltr (Inches³) 13.5 (824)
Engine Output, kW (hp) 346 (470)
Transmission PowerShift
Number Of Speeds - Forward 18
Number Of Speeds - Reverse 6
Steering Differential Steer - Track
Planetaries Outboard
Front Axle Suspension AirCushion Suspension
Service Brake Type Wet disc
Service Brake Actuation Hydraulic
DIMENSIONS
Overall Length, mm (ft/in) 6020 (19 ft 9 in)
Height Over Cab, mm (ft/in) 3393 (11 ft 2 in)
Overall Width, mm (ft/in) 3454 (11 ft 4 in)
Wheelbase, mm (ft/in) 2956 (9 ft 8 in)
Capacities
Fuel Tank, ltr (gallons (US)) 1324 (350)
Performance
Pump Flow, lt/min (gallons (US) / min) 435 (115)
System Pressure, bar (PSI) 200 (2900)
Number Of Control Valves 4
Additional Optional Control Valves 2
Flow Available To One Control Valve, lt/min (gallons (US) / min) 159 (42)
Open Or Closed Centre Closed Centre
Weights
Operating Weight, kg (lbs) 20412 (45000)
