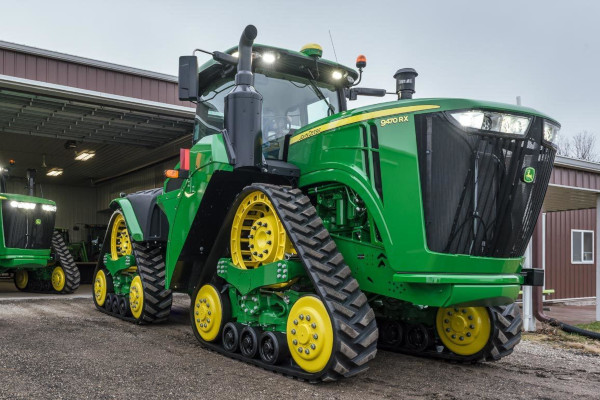

John Deere 9470 RX 4-Track, Wide or Narrow Tractor

Double tap to zoom



  • John Deere PowerTech™ 13.5L Engine
  • e18™ PowerShift Transmission
  • CommandView™ III Cab
  • Gen 4 CommandCenter™
  • Cab Suspension


9470 RX  4-Track, Wide or Narrow Tractor
Engine Specifications
Description John Deere PowerTech PSS 13.5L (B20 diesel compatible)
Engine type Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with 4 valves-in-head
Engine family JJDXL13.5310
Rated speed 2100 rpm
Aspiration Dual series turbocharger with fixed geometry first stage-variable geometry second stage - air-to-air after-cooling and cooled exhaust gas recirculation
Emission level Final Tier 4
After treatment type DOC/DPF/SCR
Displacement 824 cu in. (13.5 L)
Engine performance
Rated power 470 hp (346 kW)
Rated PTO power (hp SAE) At 2100 engine rpm: 335 hp (249 kW)
Power boost (available in transport and/or mobile PTO applications) 10 percent
Engine peak torque At 1600 rpm: 380 lb-ft (2169 Nm)
PTO torque rise 38 percent
Type Standard: John Deere e18™ 18-speed PowerShift with Efficiency Manager™: 25 mph ( 40 km/h)
Hydraulic system
Type Closed-center, pressure/flow compensated
Pump rated output Standard: 58 gpm (220 L/min); Optional: 115 gpm ( 435 L/min )
Available flow at a single rear SCV 1/2 in. couplers: 35 gpm (132 L/min)
Number of rear selective controls valves (SCVs) Standard: ISO Couplers: 4-6; Optional: ISO Couplers: 7-8 (field installed)
SCV control Electronic
Rear hitch
Hitch category (SAE designation)    Category 4N/3: 15,000 lb (6804 kg)
Category 4N/3: 20,000 lb (9072 kg)
Category 4N/4:15,000 lb ( 6804 kg)
Category 4N/4: 20,000 lb (9072 kg)
Maximum lift capacity behind lift points Category 4N/4: 20,000 lb (9072 kg)
Sensing type Electrohydraulic with draft sensing
Drawbar category   Standard: Category 5
Optional: Category 5 with heavy duty support
Category 4 conversion kit
Maximum vertical load Standard: 12,000 lb (5440 kg)
Rear power take-off (PTO)
Type Independent: 44 mm (1.75 in.) 20-spline, 1,000 rpm
Rear axle
Final drive type Bull gear and double idler with floating pinion
Rear differential lock Full-locking electrohydraulic
Front axle
Front axle differential lock Full-locking electrohydraulic
Standard tires
Wheel tread range 80-120 in. (2032-3048 mm)
Turning radius without brakes 21 ft (6400 mm)
Type  Standard: Hydraulic power-steering
Optional: Active Command Steering (ACS)
Electrical system
Alternator size  Standard: 200 amp
Optional: 240 amp
Battery options 12 V
Total cold cranking amps 925 CCA
Operator station
Seat ComfortCommand™
Cab suspension Standard
Instructional seat Standard
Display  Standard: 4100 Generation 4 CommandCenter™ with 7 in. display
Optional: 4600 Generation 4 CommandCenter™ with 10 in. display
Radio Standard: AM/FM stereo with weather-band, remote controls, auxiliary input jack, four speakers and external antenna
Inner cab volume 127 cu ft (3.597 m³)
Cab glass area 70.18 sq ft (6.52 m²)
Wheelbase 162.5 in. (4128 mm)
Overall length Excluding hitch: 300.7 in. ( 7637 mm)
Drawbar clearance 15.9 in. (403 mm)
Approximate shipping weight, Open;Cab 54,000 lb (24,494 kg)
