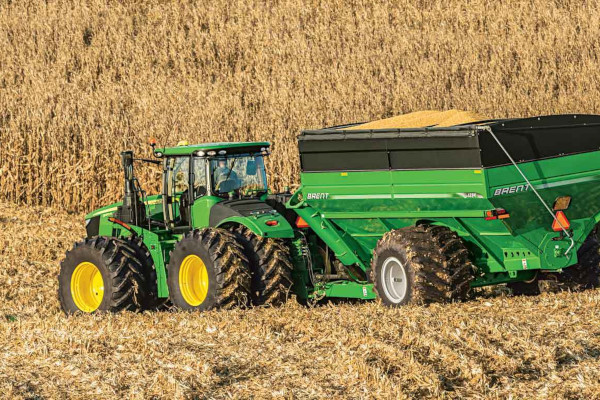

John Deere 9370R

Double tap to zoom



Features

  • Standard CommandView™ III cab offers unsurpassed amenities
  • PowerTech™ PSS cooled exhaust gas recirculation (EGR)
  • General maintenance
  • 3-point hitch and CommandCenter™ controls boost productivity
  • JDLink™ services and Service ADVISOR™ diagnostic systems
  • Power take-off (PTO), 1-3/4 1000 rpm
  • e18™ PowerShift™ transmission (PST) with Efficiency Manager™ feature
  • High-flow hydraulics, 435 L/min (115 gpm) system

Specifications

Engine

Manufacturer John Deere
Engine family PowerTech? PSS 9.0L
Aspiration Dual Series Turbocharger w/fixed geometry first stage-variable geometry second stage - air-to-air aftercooling and cooled exhaust gas recirculation
Cylinders/Displacement, cu. in. (L) 9.0 L
548 cu in.
Cylinder Liners Wet-sleeve
Fuel tank capacity, US Gal. (L) (Open; Cab) Standard
1173 L
310 U.S. gal.
Underhood muffler

Performance

Advertised PTO hp (kW) @ Rated rpm 250 kW
335 hp
Official PTO hp (kW) @ Rated rpm
Advertised Engine hp (kW) @ Rated speed 272 kW
370 hp
Max Unballast Drwbr hp (kW) @ Eng rpm
Maximum Torque (PTO) @ rpm, lb-ft (Nm)
Max Torque Rise (80% rtd spd) @ Eng rpm 38 percent
Maximum Torque Rise % (PTO) @ Eng rpm

Fuel Use, U.S. gal./hr & hp hr/gal. at:

PTO @ Rated Eng rpm
Standard PTO Speed @ Eng speed
Maximum PTO Power @ Eng rpm
Maximum Engine Power @ Eng rpm
Max Unballasted Drawbar Power @ Eng rpm
75% Load, Full Engine rpm (Unballasted)
75% Load @ Reduced rpm (Unballasted)

Transmission

Std. Transmission; Forward/Reverse e18? 18-speed PowerShift 40 kph (25 mph); 18F, 6R with Efficiency Manager?
Opt. Transmission; Forward/Reverse
Reverser No
On-the-Go Shifting (Yes/No/Partial) Yes
Clutch; Wet/Dry
Creeper

Power Take-Off (PTO)

Standard
Optional 45 mm
1.75 in.
20-spline
1000 rpm
PTO Speeds @ Engine rpm
PTO Actuation Electronic

Hydraulics

Type Closed-center, pressure/flow compensated
Pump Rated Output, GPM (L/min.) Standard
220 L/min
58 gpmOptional
435 L/min
115 gpm
Rated Flow @ One SCV, GPM (L/min.) Standard coupler: 132 L/min
35 gpm
12.7 mm
0.5 in.
Optional coupler: 159 L/min
42 gpm
19.0 mm
0.75 in.
Max Output @ SCV Couplers, GPM (L/min.)
Maximum Operating Pressure, psi (kPa) 20,000 kPa
2900 psi
Maximum Hydraulic Power, hp (kW)
Hitch Draft Control Load Sense Type Electrohydraulic
Remote Control Valves Available 4 - 6 factory, up to 8 field installed
Hitch Category (SAE Designation) 4N/Cat. 3, 4N/Cat. 4
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. Standard
6804 kg
15,000 lbOptional
9072 kg
20,000 lb
6804 kg
15,000 lb
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (SAE)
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (ASAE)
Sensing type Electrohydraulic
Joystick SCV control

Final Drive

Type Inboard planetary
Differential controls Full-locking electrohydraulic
Availability Front & Rear
Standard
Engage On-the-Go Rear Differential Lock Yes
Axle Type Single reduction
Brakes, Type and Control Hydraulic power, wet disk, self adjusting on front and rear axle

Operator Station

Rollover Protective Structure, OOS
Cab Doors
One - left handSeat Suspension System
Standard: Air
Optional: Active Seat™

2WD Dimensions

Wheelbase, in. (mm)
Front Tread Range, in. (mm)
Rear Tread Range, in. (mm)
Minimum Rear Tread Setting, in. (mm)
Front Axle Clearance, in. (mm)
Turning Radius w/Brakes, ft (m)
Turning Radius w/o Brakes, ft (m)
Unballasted Operating Weight, lb (kg)
Approx. Ship Wgt, lb (kg) Open; Cab

MFWD Dimensions

Wheelbase, in. (mm)
Front Tread Range, in. (mm)
Front Axle Clearance, in. (mm)
Turning Radius w/Brakes, ft (m)
Turning Radius w/o Brakes, ft (m)
Limited Slip Differential
Unballasted Operating Weight, lb (kg)
Approx. Ship Wgt, lb (kg) Open; Cab

4WD Dimensions

Wheelbase, in. (mm) 3807 mm
149.9 in.
Wheel Tread, Min. to Max. in. (mm)
Turning Radius w/o Brakes, ft (m) 5.55 - Group 47 Tires m
18.2 - Group 47 Tires ft
5.88 - Group 48 Tires m
19.3 - Group 48 Tires ft
Nebraska Test Unballasted w/Duals, lb (kg)
Unballasted Weight, lb (kg)

Standard Tires

2WD
MFWD
4WD 620/70R46 in. 167A8 R1W radial in dual wheel configuration
Track widths

Miscellaneous

Country of Manufacture Waterloo, Iowa, USA
Ballasting Restrictions, lb (kg) Lesser of 22,105 kg
48,700 lb
or Tire Capacity
*Notes
