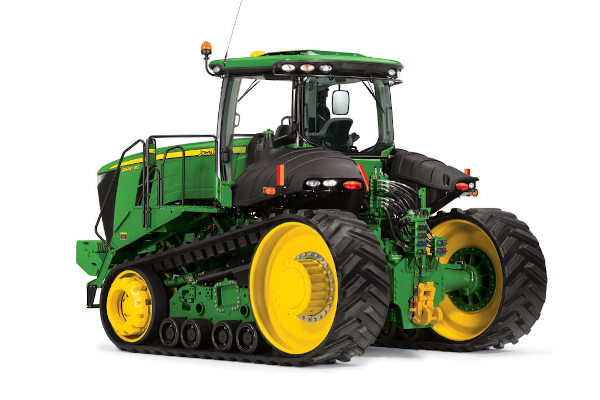

John Deere 9520RT Scraper Special

Double tap to zoom



Features

  • John Deere PowerTech™ 13.5L PSS
  • e18™ PowerShift Transmission
  • AirCushion Suspension
  • CommandView™ III cab

Specifications

Key Specs

Engine description John Deere PowerTech™ PSS 13.5L (B20 diesel compatible)
Engine displacement 13.5 L
824 cu in.
Rated engine power 382 kW
520 hp
Transmission type Standard: John Deere e18™ 18-speed PowerShift with Efficiency Manager™: 40 km/h
25 mph
Hydraulic pump rated output Standard: 435 L/min
115 gpm
Base machine weight 20,412 kg
45,000 lb

Engine specifications

Description John Deere PowerTech™ PSS 13.5L (B20 diesel compatible)
Engine type Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with 4 valves-in-head
Engine family JJDXL13.5310
Rated speed 2,100 rpm
Aspiration Dual series turbocharger with fixed geometry first stage-variable geometry second stage - air-to-air aftercooling and cooled exhaust gas recirculation
Emission level Final Tier 4
After treatment type DOC/DPF/SCR
Displacement 13.5 L
824 cu in.

Engine performance

Rated power 382 kW
520 hp
Power boost (available in transport and/or mobile PTO applications) 10 percent
Engine peak torque At 1600 rpm: 2,400 Nm
380 lb-ft
PTO torque rise 38 percent

Transmission

Type Standard: John Deere e18™ 18-speed PowerShift with Efficiency Manager™: 40 km/h
25 mph

Hydraulic system

Type Closed-center, pressure/flow compensated
Pump rated output Standard: 435 L/min
115 gpm
Available flow at a single rear SCV 0.75 in. couplers: 159 L/min
42 gpm
Number of rear selective control valves (SCVs) Standard: ISO Couplers: 4
Optional: ISO Couplers: 6
SCV control Electronic

Drawbar

Drawbar category Standard: Drawbar Support for Short Scraper Drawbars
Optional: Drawbar Support for Long Scraper Drawbars

Rear axle

Final drive type Outboard planetary

Tires

Wheel tread range 1,28.8 to 3,048 mm
72 to 120 in.
2,844.8 to 4,064 mm
112 to 160 in.

Steering

Type Standard: Heavy Duty Steering Pump: 130 cc
7.9 cu in.

Electrical system

Alternator size Standard: 200 amp
Optional: 240 amp
Battery options 12 V
Total cold cranking amps 2,775 CCA

Operator station

Seat Standard: ComfortCommand™
Optional: ActiveSeat™
Instructional seat Standard
Display Standard: 4100 Generation 4 CommandCenter™ with 7 in. display
Optional: 4600 Generation 4 CommandCenter™ with 10 in. display
Radio Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna
Inner cab volume 3.597 m3
127 cu ft
Cab glass area 6.52 m2
70.18 sq ft

Dimensions

Drawbar clearance 483 mm
19 in.
Approximate shipping weight, Open;Cab 20,412 kg
45,000 lb

Weight

Base machine weight

20,412 kg
45,000 lb
Maximum ballast level 24,494 kg
54,000 lb

Capacities

Crankcase oil volume 48 L
12.7 U.S. gal.
Fuel tank 1,324 L
350 U.S. gal.
Diesel exhaust fluid (DEF) tank 93.9 L
24.8 U.S. gal.
Cooling system 56.5 L
14.9 U.S. gal.
Transmission-hydraulic system Without 3-point hitch and PTO: 300 L
79.3 U.S. gal.

Serviceability

Interval for engine oil change 400 hours
Interval for hydraulic/transmission oil change 1,500 hours
Interval for engine coolant change 6,000 hours

Precision AG

Guidance AutoTrac™ Ready
Telematic Available with JDLink™ hardware, activations, and Ethernet Harnesses (availability dependent upon destination)
Remote diagnostics Available with activated JDLink hardware and activations

Miscellaneous

Country of manufacture USA

Additional information

Date collected 23-May-17
