Perfect for homeowners, gardeners, boat owners, and more

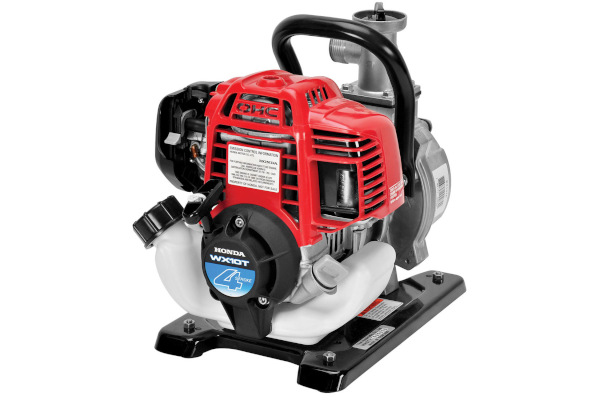

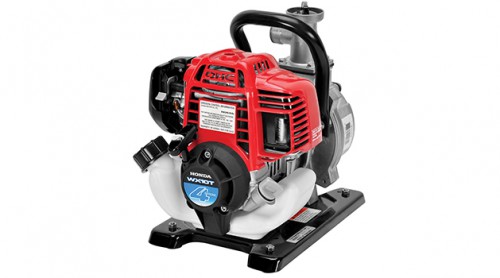

The WX10 is lightweight, compact, and easy to use.
Easy starting Honda mini 4-stroke commercial engine
The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.
At only 13 lbs., the WX10 is easily portable.
Advanced pump design for superior durability and performance
The WX10 has been completely redesigned by Honda R & D for quality and durability. Improvements to the impeller, case, engine frame bed, and other pump components add to the WX10's impressive durability and performance.
Garden hose adaptor, suction hose, clamps, and strainer included
Comes with everything you need to get started. Just hook up a garden hose, and you're ready to pump.
3 position discharge port
The WX10's discharge port can be changed to 3 different positions, providing added flexibility.
Standard transport handle
The WX10 is easy to carry wherever you need it.
32 gal./min capacity
Uses regular gasoline - no mixing of oil and gas!
The priming port is thoughtfully designed to make priming easier and reduce drips and spills.
|Bore and stroke||1.4" x 1.0"|
|Pump type||General purpose Centrifugal Self-priming|
|Mechanical Seal (Pump case / impeller)||Carbon/Ceramic|
|Priming time||80 sec. at 16.4 ft.|
|Discharge capacity||32 gal./min.|
|Suction port diameter||1.0" NPT|
|Discharge port diameter||1.0" NPT|
|Total head lift||121 ft.|
|Suction head lift||26 ft.|
|Maximum pressure||52 psi|
|Dry weight||13 lbs.|
|Fuel Capacity||0.56 qt|
|Run Time @ Max Discharge||0.9 hr|
|Strainer Part #||78325-YB0-711|
