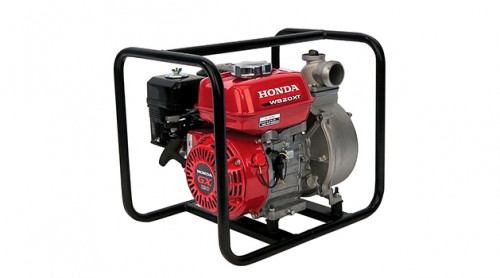

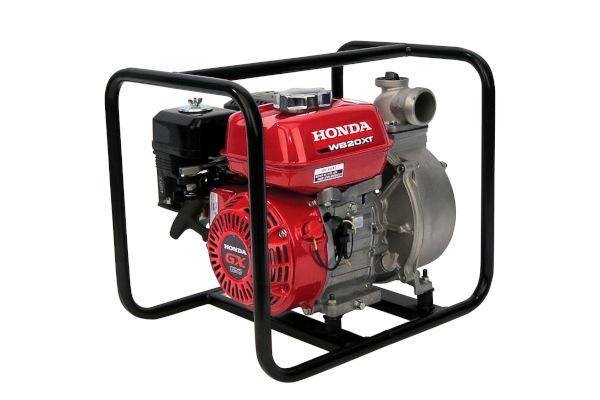

Easy starting Honda OHV commercial engine
The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.
Durable silicon carbide mechanical seal
The WB20 features abrasion-resistant silicone-carbide seals for extended wear.
4 vane high efficiency impeller
The WB20's exclusive, Honda-designed 4 vane impeller offers improved performance and high efficiency.
Cast iron volute
The rigid-mount cast iron volute reduces case wear, increasing the life of the pump.
Heavy duty full frame protection
Protects the pump, while offering a convenient tie down location for transport.
Isolation mounted engine and pump
High performance mounts minimize vibration, keeping the pump from “walking” away or “burying” itself in soft soil conditions. The reduced vibration also reduces wear on components, increasing the pump's durability.
Protected by Honda Oil Alert®
Protects the pump by shutting the engine off when low oil is detected.
The strainer allows up to 8 mm (5/16 in.) solids to pass through, helping to prevent clogging.
|Bore and stroke||2.4" x 1.7"|
|Pump type||Centrifugal, Self-priming|
|Volute||Rigid Mounted Cast Iron|
|Impeller||4 Vane Cast Iron|
|Mechanical Seal (Pump case / impeller)||Silicon Carbide/Silicon Carbide|
|Priming time||110 sec @ 16.4 ft.|
|Discharge capacity||164 gal/min|
|Suction port diameter||2" NPT|
|Discharge port diameter||2" NPT|
|Total head lift||105 ft.|
|Suction head lift||25 ft.|
|Maximum pressure||45 psi|
|Dimensions (LxWxH)||19.3" x 14.4" x 16.5"|
|Dry weight||44 lb.|
|Fuel Capacity||0.53 gal|
|Run Time @ Max Discharge||1.7 hr|
|Strainer Part #||78325-YG3-000|
