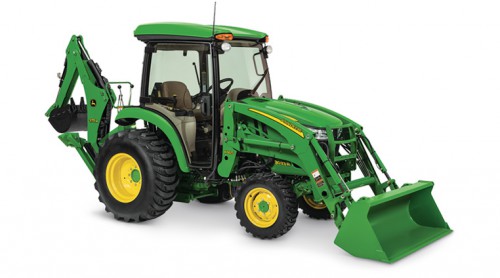

John Deere H160

John Deere H160 for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

3 Family Tractors



Quik-Park™ loader mounting system

The H-Series Loaders are designed for easy removal and mounting to and from the tractor without tools.
The parking stand, attached to the front frame of the tractor, is an integral part of the loader during loader operation.
The parking stand lowers into position by moving the joystick to the raised position once the latches are opened. This allows the loader to move to the parked position.

End-of-pin lubrication means easy maintenance

All pivot points on the loader have grease fittings that are accessible from the side of the loader to make greasing the loader much easier, ensuring that all grease points are more likely to be serviced. No more searching for grease points that are hard to find. Removing the grease gun from the grease fitting or zerk is not a problem either as sufficient radius has been left to allow the grease gun tip to be rotated to the side for removal from the fitting or zerk.

Mounting frame

The mounting frames are a round tube design that bolt to the tractor chassis.These mounting frames can be left on the tractor during operations other than loader work, as they do not impede operator visibility or tractor function.

Mounting frame for noncurrent 855 and 955 Tractors

Mounting frames are designed at the same time as the tractor in order to provide durable and yet very simple attaching points for the loader. The mounting frames bolt to the tractor chassis and do not restrict tractor use when the loader is not installed.

Mounting frame for 3R, 4200-4400, 4210-4400, 3120-3720, 3203 Open-Station Tractors

Mounting frames are designed at the same time as the tractor in order to provide durable and yet very simple attaching points for the loader. The mounting frames bolt to the tractor chassis and do not restrict tractor use when the loader is not installed.

Mounting frame for 3R, 3320-3720 and 4320-4720 Cab Tractors

Mounting frames are designed at the same time as the tractor in order to provide durable and yet very simple attaching points for the loader. The mounting frames bolt to the tractor chassis and do not restrict tractor use when the loader is not installed.

Mounting frame and hoses (3203 Tractor)

Mounting frames are designed at the same time as the tractor in order to provide durable and yet very simple attaching points for the loader. The mounting frames bolt to the tractor chassis and do not restrict tractor use when the loader is not installed.

Mounting frame with hoses and parts for 3R, 3320, 3520, and 3720 Cab Tractors

Mounting frames are designed at the same time as the tractor in order to provide durable and yet very simple attaching points for the loader. The mounting frames bolt to the tractor chassis and do not restrict tractor use when the loader is not installed.

Loader boom

The upper boom section is contoured to match the tractor hood profile for improved operator visibility forward. The lower boom section is tapered and kept close to the front of the tractor for improved maneuverability. Maximum durability is provided when the two boom halves are welded together because the upper boom section overlaps the lower boom section providing additional strength in the knee area.

  • Torque tube connection on boom arms provides strength and rigidity
  • Hydraulic lines and hoses are mounted on the inside of the boom for protection from possible damage
  • Bucket linkage improves rollback power and improves working angles on the loader

Loader cylinders

Boom and bucket cylinders are designed to match tractor hydraulics, resulting in productive cycle times.
Cylinder rod features a nitride (black) rod that results in improved corrosion resistance versus a standard chromed cylinder rod.

Loader latch

The loader latches are opened or closed for parking or mounting the loader.  Down pressure applied to the loader with the bucket slightly dumped will allow the latches to be opened so the parking stands will then move into place to park the loader. The latches are adjustable to minimize wear on the mast to mounting frame connection. This same adjustment will allow the loader to be locked onto the tractor to prevent the parking of the loader. A secondary tab indicates when the latches are closed.

Loader mast

A casting is used to manufacture the mast versus a welded steel structure because this enables the unique shape to provide improve visibility forward along the tractor.

Quik-Park™ loader mounting system

The H-Series Loaders are designed for easy removal and mounting to and from the tractor without tools.
The parking stand, attached to the front frame of the tractor, is an integral part of the loader during loader operation.
The parking stand lowers into position by moving the joystick to the raised position once the latches are opened. This allows the loader to move to the parked position.

Bucket level indicator

The bucket level indicator assists the operator to determine the attachment position at ground level.
It is adjustable to indicate level position for different attachments such as pallet forks and buckets.
The indicator is adjusted to have the bend of the rod rest in the bracket when the attachment is level at ground.

Quik-change attachment carrier

Allows fast, easy removal/mounting of attachments without tools.

Hood guard

The hood guard provides protection to the tractor for loading applications where it is common for the front of the tractor to contact the side of the object being loaded.

The hood guard remains with tractor when the loader is removed and can be folded forward for access to the engine compartment.

Hood guard for 3203 Tractors

A hood guard can be ordered for a tractor without ordering a loader.
The hood guard protects the front of the tractor while operating the loader.
The bolt-on design stays with tractor when loader is removed.

Deluxe hood guard for 3R Series Tractors

A standard hood guard for the 3R Tractor can be upgraded to a deluxe hood guard.

Hood guard for 3R Series Tractors

A hood guard can be ordered for a tractor without ordering a loader.
The hood guard protects the front of the tractor while operating the loader.
The bolt-on design stays with tractor when loader is removed.

Hood guard for 4000 and 4010 Series Tractors

A hood guard can be ordered for a tractor without ordering a loader.
The hood guard protects the front of the tractor while operating the loader.
The bolt-on design stays with tractor when loader is removed.

Hood guard for 3000 TWENTY Series Tractors

A hood guard can be ordered for a tractor without ordering a loader.
The hood guard protects the front of the tractor while operating the loader.
The bolt-on design stays with tractor when loader is removed.
The hood guard for the 3000 TWENTY Series Tractors pivots forward to allow the tractor hood to be raised.

Deluxe hood guard attachment

Hood guard attachment to make BW15219 or BW15221 into a deluxe hood guard.







Fits the following models: 3R Series Tractors

Leveling configuration ---
Bucket used ---
Bucket weight, lb (kg) 93.8 kg206.8 lb
Lift capacity at full height, lb (kg) ---
Measured at pivot (U) 607 kgf1338 lbf
Measured at 500 mm ahead of pivot (V) 448 kgf988 lbf
Measured at 800 mm ahead of pivot (V) ---
Lift capacity at 59 in. (1500 mm), lb (kg) ---
Measured at pivot (W) 760 kgf1676 lbf
Measured at 500 mm ahead of pivot (X) 586 kgf1292 lbf
Measured at 800 mm ahead of pivot (X) ---
Boom breakout force, lbf (kgf) ---
Measured at pivot (Y) 1290 kgf2844 lbf
Measured at 500 mm ahead of pivot (Z) 917 kgf2022 lbf
Measured at 800 mm ahead of pivot (Z) ---
Bucket rollback force capacity, lbf (kgf) ---
At maximum height (VV) 1209 kgf2665 lbf
At 59-in. (1500-mm) lift height (XX) 1506 kgf3320 lbf
At ground-level line (ZZ) 1174 kgf2588 lbf
Dimensions ---
Maximum lift height, in. (mm) (A) 2259 mm89 in.
Clearance ---
At full height - bucket level, in. (mm) (B) 2098 mm83 in.
At full height - bucket dumped, in. (mm) (C) 1741 mm69 in.
Overall length (I+F), ft (m) 3.5 m11.5 ft
Overall height in carry position, ft (m) (J) ---
Digging depth, in. (mm) (H) 104 mm4 in.
Reach ---
At maximum height, in. (mm) (D) 700 mm28 in.
At ground level - bucket level, in. (mm) (F) 1257 mm49 in.
Bucket angle ---
Dump angle, degrees (E) 40 degree (angle)
Rollback angle, degrees (G) 22 degree (angle)
Dump angle, ground ---
Cycle times ---
Loader raise, seconds 2.68 seconds
Loader lower, seconds 1.64 seconds
Bucket dump, seconds 3.64 seconds
Bucket rollback, seconds 2.15 seconds
Date collected ---
