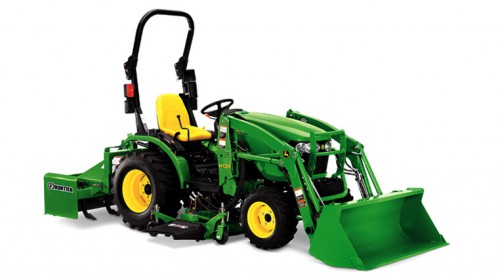

John Deere H130

John Deere H130 for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

2 Family Tractors



Quik-Park™ loader mounting system

The H130 Loader is designed for easy removal/mounting to/from the tractor without tools.

The parking stand is attached to the mast and lowers into position by moving the joystick to the raise position once the latches are opened to allow the loader to move to the park position.

End-of-pin lubrication on cylinder and pivot pins allows easy access for servicing grease points

The unique offset head design eliminates cross-pins and cotter pins to retain the pin.

A nut ensures the pins remain in position.

A lubrication groove provides a path for lubrication.

End-of-pin lubrication allows easy access for servicing grease points, which are visible from the side of the loader.

Hood guard for noncurrent 4100, 4110, and 4115 Tractors

A hood guard can be ordered for a tractor without ordering a loader.

The hood guard protects the front of the tractor while operating the loader.

The bolt-on design stays with tractor when loader is removed.

Hood guard for 2025R and non-current 2305, 2320, 2210 Tractors

A hood guard can be ordered for a tractor without ordering a loader.

The hood guard protects front of tractor while operating the loader.

The bolt-on design stays with tractor when loader is removed

This hood guard can be tilted forward to open the hood for service

Hood guard for model year 2016 and earlier 2032R and non-current 2520 and 2720 Tractors

A hood guard can be ordered for a tractor without ordering a loader.

The hood guard protects the front of the tractor while operating the loader.

The bolt-on design stays with tractor when loader is removed

The hood guard can be tilted forward to open the hood for service (on some models as needed).

1250-mm (49-in.) materials bucket

Materials buckets are available to match tractor-loader applications. The buckets may be used for loading dirt, gravel, feed, and light materials as well as scraping, digging, and other general-purpose tasks. The top surface of the bucket is parallel to the cutting edge, which aids the operator as a leveling guide.

1350-mm (53-in.) materials bucket

Materials buckets are available to match tractor-loader applications. The buckets may be used for loading dirt, gravel, feed, and light materials as well as scraping, digging, and other general-purpose tasks. The top surface of the bucket is parallel to the cutting edge, which aids the operator as a leveling guide.

61-in. (1550-mm) materials bucket

Materials buckets are available to match tractor-loader applications. The buckets may be used for loading dirt, gravel, feed, and light materials as well as scraping, digging, and other general-purpose tasks.

1250-mm (49-in.) pin-on materials bucket

Pin-on materials buckets are intended to stay with the loader at all times; however, they can be removed with simple tools.
The buckets may be used for loading dirt, gravel, feed, and light materials as well as scraping, digging, and other general-purpose tasks.
The top surface of the bucket is parallel to the cutting edge, which aids the operator as a leveling guide.

Mounting frame for noncurrent 2210 Tractor

The mounting frame for the 2210 Tractor features a high-mast design, which does not restrict visibility or tractor use when the loader is removed. Structural support is increased with a cross tie between the two frames under the tractor chassis.

Mounting frame for noncurrent 4100 and 4110 Tractors

The mounting frame for the 4100 and 4110 Tractors features a high-mast design, which does not restrict visibility or tractor use when the loader is removed. Structural support is increased with a cross tie between the two frames under the tractor chassis.

Mounting frame for noncurrent 4115 Tractor

The mounting frame for the 4115 Tractor features a high-mast design, which does not restrict visibility or tractor use when the loader is removed. Structural support is increased with a cross tie between the two frames under the tractor chassis.

Mounting frame for 2025R and 2320 Tractors

The mounting frame for the 2025R and 2320 Tractors features a high-mast design, which does not restrict visibility or tractor use when the loader is removed. Structural support is increased with a cross tie between the two frames under the tractor chassis.

Mounting frame for 2305 Tractor

The mounting frame for the 2305 Tractor features a high-mast design, which does not restrict visibility or tractor use when the loader is removed. Structural support is increased with a cross tie between the two frames under the tractor chassis.

Mounting frame for 2032R and 2720 Tractors

The mounting frame for the 2032R and 2720 Tractors features a high-mast design, which does not restrict visibility or tractor use when the loader is removed.

Mounting frame for 2520 Tractor

The mounting frame for the 2520 Tractor features a high-mast design, which does not restrict visibility or tractor use when the loader is removed. Structural support is increased with a cross tie between the two frames under the tractor chassis.

Quik-change attachment carrier

The quik-change attachment carrier allows one person to quickly change attachments without the use of tools. Simply roll the attachment back with the boom slightly off the ground, remove the retaining pins, and then roll the attachment forward and lower to the ground. To connect to another attachment simply align the attachment carrier with the hooks of the attachment, raise the boom for the carrier to engage the hooks of the attachment and rollback the attachment carrier. Then install the retaining pins and the carrier is ready to work.

Hydraulic hose and fittings

The compact loaders use the same two-wire braid, high-pressure hydraulic hose found on larger loaders. This provides added reliability and longer life.

The fittings used to connect the hoses to the hydraulic cylinders and hydraulic lines utilize O-ring face seal fittings to virtually eliminate oil leaks. No other competitors provide this quality of fitting and, as a result, competitors have many more oil leak issues than John Deere compact loaders.



Fits the following models: 2025R and 2032R

Leveling configuration Non-Self Leveling
Bucket used 1250 pin-on mm49 pin-on in.
Bucket weight, lb (kg) 70.2 kg154.4 lb
Lift capacity at full height, lb (kg) ---
Measured at pivot (U) 465 kg1023 lb
Measured at 500 mm ahead of pivot (V) 325 kg715 lb
Measured at 800 mm ahead of pivot (V) ---
Lift capacity at 59 in. (1500 mm), lb (kg) ---
Measured at pivot (W) 567 kg1247 lb
Measured at 500 mm ahead of pivot (X) 416 kg915 lb
Measured at 800 mm ahead of pivot (X) ---
Boom breakout force, lbf (kgf) ---
Measured at pivot (Y) 1140 kg2508 lb
Measured at 500 mm ahead of pivot (Z) 734 kg1615 lb
Measured at 800 mm ahead of pivot (Z) ---
Bucket rollback force capacity, lbf (kgf) ---
At maximum height (VV) 749 kgf1648 lbf
At 59-in. (1500-mm) lift height (XX) 931 kgf2048 lbf
At ground-level line (ZZ) 785 kgf1727 lbf
Dimensions ---
Maximum lift height, in. (mm) (A) 1999 mm78.7 in.
Clearance ---
At full height - bucket level, in. (mm) (B) 1838 mm72.4 in.
At full height - bucket dumped, in. (mm) (C) 1570 mm61.8 in.
Overall length (I+F), ft (m) 2.8 m9.3 ft
Overall height in carry position, ft (m) (J) 1.2 m3.9 ft
Digging depth, in. (mm) (H) 93 mm3.7 in.
Reach ---
At maximum height, in. (mm) (D) 625 mm24.6 in.
At ground level - bucket level, in. (mm) (F) 1225 mm48.2 in.
Bucket angle ---
Dump angle, degrees (E) 38 degree (angle)
Rollback angle, degrees (G) 24.5 degree (angle)
Dump angle, ground 118 degree (angle)
Cycle times ---
Loader raise, seconds 4.73 seconds
Loader lower, seconds 2.88 seconds
Bucket dump, seconds 4.73 (without regen)/1.85 (with regen) seconds
Bucket rollback, seconds 2.88 seconds
Date collected ---
