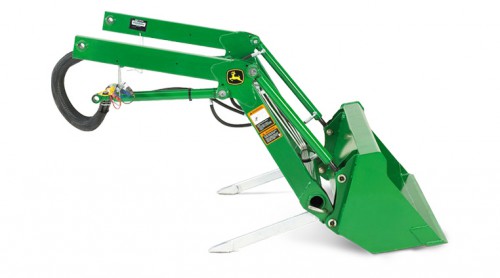

John Deere D120

John Deere D120 for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

1 Family Tractors



Easily remove and mount loader to and from the tractor without tools

The parking mounting system on the D120 Loader is designed for easy removal and mounting to and from the tractor without tools.

Similar to that of the 305 Loaders, the D120’s parking stands are kept in the torque tube for easy accessibility. To park the loader, simply install parking stands, remove pivot pins from the mast, disconnect the hydraulic hoses, and back out the tractor.

End-of-pin lubrication on cylinder and pivot pins allows easy access for servicing grease points

The unique offset head design eliminates cross-pins and cotter pins to retain the pin.

A nut ensures the pins remain in position.

A lubrication groove provides a path for lubrication.

End-of-pin lubrication allows easy access for servicing grease points, which are visible from the side of the loader.

Quik-change attachment carrier

The quik-change attachment carrier allows one person to quickly change attachments without the use of tools. Simply roll the attachment back with the boom slightly off the ground, remove the retaining pins, and then roll the attachment forward and lower to the ground. To connect to another attachment simply align the attachment carrier with the hooks of the attachment, raise the boom for the carrier to engage the hooks of the attachment and rollback the attachment carrier. Then install the retaining pins and the carrier is ready to work.

Hydraulic hose and fittings

The compact loaders use the same two-wire braid, high-pressure hydraulic hose found on larger loaders. This provides added reliability and longer life.

The fittings used to connect the hoses to the hydraulic cylinders and hydraulic lines utilize O-ring face seal fittings to virtually eliminate oil leaks. No other competitors provide this quality of fitting and, as a result, competitors have many more oil leak issues than John Deere compact loaders.

Loader hydraulic features

Loader boom and bucket functions operate through the tractor hydraulic dual mid-selective control valve (SCV) controlled by the joystick.

Hydraulic hoses connect the loader to the tractor dual mid-SCV and utilize quick-couplers for fast, easy coupling and uncoupling of the loader to the tractor hydraulic system.

The loader control (joystick) is integrated into the operator platform for easy ergonomic operation by the operator from the tractor seat. This also allows simultaneous boom and bucket functions to provide superior performance while moving material from a pile.

Basic hood guard

The hood guard protects the front of the tractor while operating the loader.
The bolt-on design stays with the tractor when the loader is removed.
The hood guard is fixed and provides full tractor access for regular service.
Standard on D120 Loaders, the hood guard can be ordered for a tractor without ordering a loader.

Deluxe hood guard

The deluxe hood guard protects the front of the tractor while wrapping around the hood for extra added protection. The bolt-on design stays with the tractor when the loader is removed.
The hood guard is fixed and provides full tractor access for regular service.

Standard on H120 Loaders, the hood guard can be ordered for a tractor without ordering a loader.

The deluxe hood guard is the same for both the D120 and H120 Loaders; however, it is only available as field-installed option for the D120 Loaders.

1250-mm (49-in.) materials bucket

Materials buckets are available to match tractor-loader applications. The buckets may be used for loading dirt, gravel, feed, and light materials as well as scraping, digging, and other general-purpose tasks. The top surface of the bucket is parallel to the cutting edge, which aids the operator as a leveling guide.

1350-mm (53-in.) materials bucket

Materials buckets are available to match tractor-loader applications. The buckets may be used for loading dirt, gravel, feed, and light materials as well as scraping, digging, and other general-purpose tasks. The top surface of the bucket is parallel to the cutting edge, which aids the operator as a leveling guide.

61-in. (1550-mm) materials bucket

Materials buckets are available to match tractor-loader applications. The buckets may be used for loading dirt, gravel, feed, and light materials as well as scraping, digging, and other general-purpose tasks.

1250-mm (49-in.) pin-on materials bucket

Pin-on materials buckets are intended to stay with the loader at all times; however, they can be removed with simple tools.
The buckets may be used for loading dirt, gravel, feed, and light materials as well as scraping, digging, and other general-purpose tasks.
The top surface of the bucket is parallel to the cutting edge, which aids the operator as a leveling guide.

Mounting frame for D120 Loaders

Mounting frames are designed at the same time as the tractor in order to provide durable yet very simple attaching points for the loader. The mounting frames bolt to the tractor chassis and do not restrict tractor use when the loader is not installed.

Mounting frame for H120 Loaders

Mounting frames are designed at the same time as the tractor in order to provide durable yet very simple attaching points for the loader. The mounting frames bolt to the tractor chassis and do not restrict tractor use when the loader is not installed.

iMatch™ quick-coupler bushing kit

Bushing kit for use with Category 1 implements (ballast box) to make them function correctly with the iMatch Quick-Hitch.

Ballast box

Ballast box can be used to carry additional ballast for greater tractor stability.

A 23-cm (9-in.) -high extension can be added to ballast box for even greater capacity.

The hitch utilizes a standard Category 1 configuration for connection to the tractor Category 1 hitch.

A bushing kit is required for the ballast box to be used with the iMatch™ Quick-Hitch.

Ballast box extension

Ballast box can be used to carry additional ballast for greater tractor stability.

A 23-cm (9-in.)-high extension can be added to ballast box for even greater capacity.

The hitch utilizes a standard Category 1 configuration for connection to the tractor Category 1 hitch.

A bushing kit is required for the ballast box to be used with the iMatch™ Quick-Hitch.

End-of-pin lubrication on cylinder and pivot pins allows easy access for servicing grease points

The unique offset head design eliminates cross-pins and cotter pins to retain the pin.

A nut ensures the pins remain in position.

A lubrication groove provides a path for lubrication.

End-of-pin lubrication allows easy access for servicing grease points, which are visible from the side of the loader.







Fits the following models: 1023E and 1025R

  • Parkable
  • 570 pounds (259 kg) of lift capacity
  • 71.2 in. (1,809 mm) of lift height
