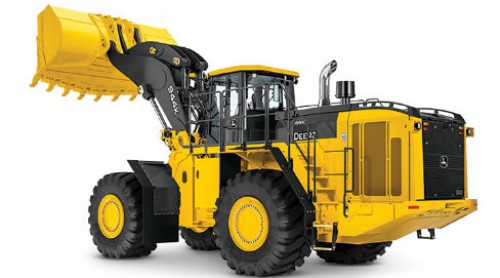

John Deere 944K Hybrid
John Deere 944K Hybrid for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.
Over 5 cu. yd. Production Loaders
- John Deere PowerTech™ PSX 6135 13.5L (824 cu. in.) engine runs over an efficient speed-range band, lowering noise levels, improving fuel economy, providing consistent boom and bucket response, and reducing engine wear.
- The 944K Hybrid Wheel Loader can provide significant fuel savings over 9-yard3 (6.88 m3) loaders with conventional drivetrains.*
- John Deere fully integrated hybrid-electric drivetrain engineered for productivity and durability while delivering revolutionary efficiency.
- Individual oil-cooled, brushless, AC, electric wheel motors with standard traction control that significantly reduces tire wear and damage from spinning and slicing.
- Extended engine-only, powertrain, powertrain and hydraulics, and full-machine warranties available.
*Actual fuel consumption rates and savings will vary with machine application, utilization, operator, and model of competitive unit.
|Model||944 K Interim Tier 4|
|Engine Manufacturer||John Deere|
|Engine Model||PowerTech PSX 6135|
|Emission Rating||Interim Tier 4|
|Displacement, ltr (Inches³)||13.5 (824)|
|Rated Speed, rpm||1600|
|Engine Output - Net, kW (hp)||400 (536)|
|Torque, Nm (lbf / ft)||2530 (1866)|
|Torque Rise, %||23|
|Transmission Type||A/C Electric|
|Tire size - Standard||35 / 65 R33 - Michelin|
|Service Brake - Type||Wet Multi Disc|
|Service Brake - Location||All Wheels|
|Service Brake - Actuation||Hydraulic|
|Parking Brake - Type||Wet Multi Disc|
|Height - Over Cab, mm (ft/in)||4150 (13 ft 4 in)|
|Wheelbase, mm (ft/in)||4500 (14 ft 9 in)|
|Length - Including Bucket, mm (ft/in)||11690 (38 ft 4 in)|
|Ground clearance, mm (inches)||582 (22.9)|
|Width Over tires - Std mm, mm (ft/in)||3729 (12 ft 3 in)|
|Height - Pivot Pin, mm (ft/in)||5350 (17 ft 7 in)|
|Reach - At 2130mm 45° Dump, mm (ft/in)||2870 (9 ft 5 in)|
|Turning Circle - Maximum, mm (ft/in)||17860 (58 ft 6 in)|
|Fuel Tank, ltr (gallons (US))||761 (201)|
|Hydraulic Tank, ltr (gallons (US))||378 (100)|
|Transmission, ltr (gallons (US))||34 (9)|
|Heaped Capacity, m³ (yd³)||7.65 (10)|
|Bucket Capacity - Smallest, m³ (yd³)||6.5 (8.5)|
|Largest bucket capacity, m³ (yd³)||7.65 (10)|
|Breakout - Bucket , kgf (lbf)||46896 (103388)|
|Ride Control System||Optional|
|System Voltage, V||24|
|Alternator Output, Amp||150|
|Pump Type||Axial Piston Pump|
|Pump Flow, lt/min (gallons (US) / min)||379 (100)|
|System Pressure, bar (PSI)||350 (5000)|
|Operating Weight, kg (lbs)||53500 (117947)|
|Dump Height mm, mm (ft/in)||3770 (12 ft 4 in)|
|Reach at Full Height mm, mm (ft/in)||1800 (5 ft 11 in)|
|Tipping Load - Straight kg, kg (lbs)||38059 (83906)|
