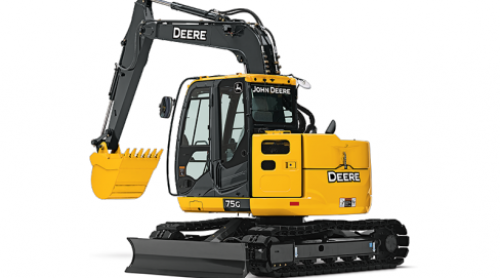

John Deere 75G

John Deere 75G for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Excavators



  • Final Tier 4 emission-certified engine
  • Reduced tail swing
  • Easy-to-navigate enhanced LCD monitor
  • Highly efficient, heavy-duty cooling system
Manufacturer John Deere
Model 75G Tier 4 Final
DRIVELINE
Emission Rating  Tier 4
Engine Manufacturer  Yanmar
Number Of Cylinders (Per Engine)  4
Displacement, ltr (Inches³)  3.3 (202)
Rated speed, rpm  2000
Engine Output - Net, kW (hp)  42.5 (56.9)
Number Of Carrier Rollers - Each Side  1
Number Of Track Rollers - Each Side  5
Track Shoe Width, mm (inches)  600 (24)
DIMENSIONS
Transport Length, mm (ft/in)  6370 (20 ft 11 in)
Transport Height - Maximum, mm (ft/in)  2690 (8 ft 10 in)
Overall Width, mm (ft/in)  2470 (8 ft 1 in)
Track Length On Ground, mm (ft/in)  2290 (7 ft 6 in)
Undercarriage Overall Length, mm (ft/in)  2920 (9 ft 7 in)
Tailswing Radius, mm (ft/in)  1290 (4 ft 3 in)
Ground Clearance, mm (inches)  360 (14)
Dozer Blade Height, mm (inches)  480 (19)
Dozer Blade Width, mm (ft/in)  2470 (8 ft 1 in)
Width over standard tracks, mm (ft/in)  2320 (7 ft 7 in)
Track Gauge, mm (ft/in)  1870 (6 ft 2 in)
Digging Reach - Mono Boom, mm (ft/in)  6920 (22 ft 8 in)
Ground Level Reach - Mono Boom, mm (ft/in)  6760 (22 ft 2 in)
Dig Height - Mono Boom, mm (ft/in)  7610 (25 ft )
Dump Height - Mono Boom, mm (ft/in)  5510 (18 ft 1 in)
Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in)  4320 (14 ft 2 in)
Dig Depth - Mono Boom, mm (ft/in)  4610 (15 ft 1 in)
Standard Dipper For Lifting, mm (ft/in)  2120 (6 ft 11 in)
Capacities
Fuel Tank, ltr (gallons (US))  135 (35.7)
Hydraulic Tank, ltr (gallons (US))  56 (15)
Voltage, V  24
Number Of Batteries  2
Performance
Ground Bearing Pressure, kPa (PSI)  27 (3.9)
Slew Speed, rpm  10.5
Slew Torque, kNm (lbf / ft)  16.6 (12244)
Travel Speed - High, kph (mph)  5 (3.1)
Tractive Force, kN (lbf)  65.2 (14661)
Dipper Tearout, kN (lbf)  30.7 (6902)
Bucket Breakout, kN (lbf)  46.6 (10476)
Gradeability, %  70
Main Pumps - Maximum Flow, lt/min (gallons (US) / min)  144 (38)
Bucket Pressure, bar (PSI)  260 (3771)
Weights
Operating Weight, kg (lbs)  8265 (18221)
