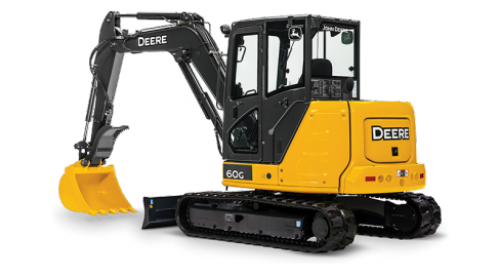

John Deere 60G

John Deere 60G for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Excavators



  • Final Tier 4 emission-certified engine
  • Spacious operator station with wider entryway for easier entrance/exit
  • Multifunction monitor displays vital machine info
  • Service door improves access to new side-by-side cooler cores
Manufacturer John Deere
Model 60G Tier 4 Final
DRIVELINE
Emission Rating Tier 4
Engine Manufacturer Yanmar
Number Of Cylinders (Per Engine) 4
Displacement, ltr (Inches³) 3.3 (203)
Rated speed, rpm 2000
Engine Output - Net, kW (hp) 39.6 (53)
Number Of Carrier Rollers - Each Side 1
Number Of Track Rollers - Each Side 4
Track Shoe Width, mm (inches) 400 (16)
DIMENSIONS
Transport Length, mm (ft/in) 5760 (18 ft 11 in)
Transport Height - Maximum, mm (ft/in) 2540 (8 ft 4 in)
Overall Width, mm (ft/in) 2000 (6 ft 7 in)
Track Length On Ground, mm (ft/in) 1990 (6 ft 6 in)
Undercarriage Overall Length, mm (ft/in) 2500 (8 ft 2 in)
Tailswing Radius, mm (ft/in) 1300 (4 ft 3 in)
Ground Clearance, mm (inches) 340 (13)
Dozer Blade Height, mm (inches) 420 (16)
Dozer Blade Width, mm (ft/in) 2000 (6 ft 7 in)
Width over standard tracks, mm (ft/in) 2000 (6 ft 7 in)
Track Gauge, mm (ft/in) 1600 (5 ft 3 in)
Digging Reach - Mono Boom, mm (ft/in) 6230 (20 ft 5 in)
Dig Height - Mono Boom, mm (ft/in) 5960 (19 ft 7 in)
Dump Height - Mono Boom, mm (ft/in) 4170 (13 ft 8 in)
Dig Depth - Mono Boom, mm (ft/in) 3770 (12 ft 4 in)
Standard Dipper For Lifting, mm (ft/in) 1500 (4 ft 11 in)
Capacities
Fuel Tank, ltr (gallons (US)) 120 (31.7)
Hydraulic Tank, ltr (gallons (US)) 80 (21.1)
Voltage, V 12
Number Of Batteries 1
Performance
Ground Bearing Pressure, kPa (PSI) 35 (5.12)
Slew Speed, rpm 9.5
Travel Speed - High, kph (mph) 4.8 (3)
Dipper Tearout, kN (lbf) 31.1 (6989)
Bucket Breakout, kN (lbf) 41.1 (9237)
Main Pumps - Maximum Flow, lt/min (gallons (US) / min) 144 (38)
Weights
Operating Weight, kg (lbs) 6145 (13547)
