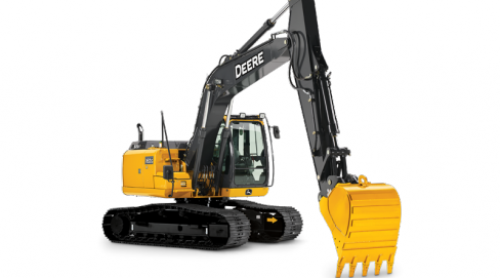

John Deere 160G LC

John Deere 160G LC for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Excavators



  • Interim Tier 4-emission certified engine
  • Powerwise™ III management system
  • Easily transportable
  • Cool-on-demand variable-speed fan
Manufacturer John Deere
Model 160G LC Interim Tier 4
DRIVELINE
Emission Rating  Interim Tier 4
Engine Manufacturer  John Deere
Number Of Cylinders (Per Engine)  4
Displacement, ltr (Inches³)  4.5 (275)
Rated speed, rpm  2200
Engine Output - Net, kW (hp)  90 (121)
Number Of Carrier Rollers - Each Side  2
Number Of Track Rollers - Each Side  7
Track Shoe Width, mm (inches)  700 (28)
DIMENSIONS
Transport Length, mm (ft/in)  8650 (28 ft 5 in)
Transport Height - Maximum, mm (ft/in)  3110 (10 ft 2 in)
Overall Width, mm (ft/in)  2690 (8 ft 10 in)
Track Length On Ground, mm (ft/in)  3100 (10 ft 2 in)
Undercarriage Overall Length, mm (ft/in)  3920 (12 ft 10 in)
Tailswing Radius, mm (ft/in)  2550 (8 ft 4 in)
Ground Clearance, mm (inches)  470 (19)
Width over standard tracks, mm (ft/in)  2690 (8 ft 10 in)
Track Gauge, mm (ft/in)  1990 (6 ft 6 in)
Digging Reach - Mono Boom, mm (ft/in)  9330 (30 ft 7 in)
Ground Level Reach - Mono Boom, mm (ft/in)  9160 (30 ft 1 in)
Dig Height - Mono Boom, mm (ft/in)  9130 (29 ft 11 in)
Dump Height - Mono Boom, mm (ft/in)  6400 (21 ft )
Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in)  6270 (20 ft 7 in)
Dig Depth - Mono Boom, mm (ft/in)  6490 (21 ft 4 in)
Standard Dipper For Lifting, mm (ft/in)  3100 (10 ft 2 in)
Capacities
Fuel Tank, ltr (gallons (US))  320 (84.5)
Hydraulic Tank, ltr (gallons (US))  125 (33)
Voltage, V  24
Number Of Batteries  2
Performance
Ground Bearing Pressure, kPa (PSI)  35 (5.08)
Slew Speed, rpm  13.3
Slew Torque, kNm (lbf / ft)  44 (32353)
Travel Speed - High, kph (mph)  5.3 (3.3)
Tractive Force, kN (lbf)  169.16 (38030)
Dipper Tearout, kN (lbf)  82 (18508)
Bucket Breakout, kN (lbf)  119 (26665)
Gradeability, %  70
End lift - 7.5m Reach, kg (lbs)  3000 (6400)
Side lift - 7.5m Reach, kg (lbs)  1800 (3850)
Main Pumps - Maximum Flow, lt/min (gallons (US) / min)  382 (100)
Bucket Pressure, bar (PSI)  343 (4980)
Boost Pressure, bar (PSI)  380 (5511)
Weights
Operating Weight, kg (lbs)  18071 (39685)
