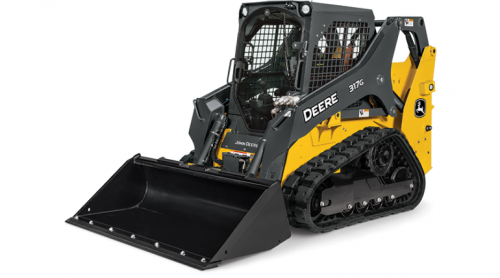

John Deere 317G

John Deere 317G for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Compact Track Loaders



  • Final Tier 4-emission certified engine
  • Clear sightlines above and below boom
  • Optimized power-to-weight ratio
  • Swing-out hydraulic coolers
Manufacturer John Deere
Model 317 G Tier 4 Final
DESCRIPTION
Lift Geometry  Vertical
DRIVELINE
Engine Manufacturer  Yanmar
Engine Model  4TNV86CHT
Emission Rating  Tier 4
Aspiration  Turbo
Displacement, ltr (Inches³)  2.1 (128)
Rated Speed, rpm  2600
Engine Output - Net, kW (hp)  45.6 (61)
Engine Output - Gross, kW (hp)  48.5 (65)
Torque, Nm (lbf / ft)  207 (153)
Track Shoe Width, mm (inches)  320 (12.6)
DIMENSIONS
Length - No Bucket, mm (inches)  2630 (103)
Length - With Bucket, mm (inches)  3240 (127.6)
Width - No Bucket, mm (inches)  1650 (65.1)
Height - Top Of Cab, mm (inches)  1990 (78.5)
Ground Clearance, mm (inches)  210 (8.3)
Rear Departure Angle, °  32.3
Track Gauge, mm (inches)  1330 (52.5)
Height to Hinge Pin, mm (inches)  3070 (121)
Dump Angle, °  42
Dump Height - Maximum, mm (inches)  2430 (95.6)
Rollback - Ground Level, °  30
CAPACITIES
Fuel Tank, ltr (gallons (US))  71 (19)
PERFORMANCE
Rated Operating Capacity, kg (lbs)  965 (2125)
Tipping Load, kg (lbs)  2756 (6070)
Ground Bearing Pressure, kPa (PSI)  38 (5.5)
Speed - Maximum, kph (mph)  11.3 (7)
Breakout - Lift, kN (lbf)  22.2 (5000)
Breakout - Bucket, kN (lbf)  26.6 (6000)
Hydraulic Power, kW (hp)  23.159 (31)
Pump Flow, lt/min (gallons (US) / min)  59 (16)
System Pressure, bar (PSI)  237.87 (3450)
WEIGHTS
Operating Weight, kg (lbs)  3721 (8195)
