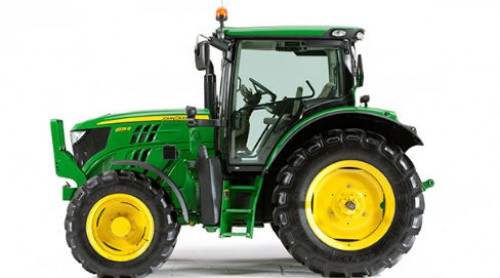

John Deere 6130R

John Deere 6130R for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

6R Series



  • Great rearward visibility – 30 degrees of right-hand seat swivel with CommandARM™-equipped cabs
  • 130 hp FT4 engine combines performance and fluid economy
  • Multiple transmission choices, including a 31 mph (50 kmh) option
Manufacturer John Deere
Model 6130R FT4
Official Test
Nebraska Test number  TBD - Nebraska Test
Engine
Manufacturer  John Deere PowerTech PSS
Engine family  ---
Aspiration  Dual Series Turbocharger with fixed geometry first stage-variable geometry second stage, air-to-air aftercooling and cooled exhaust gas recirculation
Cylinders/Displacement, cu. in. (L)  4 / 4.5 L
   4 / 275 cu in.
Cylinder Liners  Wet sleeve
Fuel tank capacity, US Gal. (L) (Open; Cab)  ---
Standard  195 L
   51.5 U.S. gal.
Optional  ---
Underhood muffler  Yes
Performance
Advertised PTO hp (kW) @ Rated rpm  70 @ 2100 kW
   101 @ 2100 hp
Official PTO hp (kW) @ Rated rpm  TBD - Nebraska Test
@ Standard PTO @ Eng rpm  TBD - Nebraska Test
Maximum @ Eng rpm  TBD - Nebraska Test
Advertised Engine hp (kW) @ Rated speed  96 kW
   130 hp
Max Unballast Drwbr hp (kW) @ Eng rpm  TBD - Nebraska Test
Maximum Torque (PTO) @ rpm, lb-ft (Nm)  TBD - Nebraska Test
Max Torque Rise (80% rtd spd) @ Eng rpm  TBD - Nebraska Test
Maximum Torque Rise % (PTO) @ Eng rpm  TBD - Nebraska Test
Fuel Use, U.S. gal./hr & hp hr/gal. at:
PTO @ Rated Eng rpm  TBD - Nebraska Test
Standard PTO Speed @ Eng speed  TBD - Nebraska Test
Maximum PTO Power @ Eng rpm  TBD - Nebraska Test
Maximum Engine Power @ Eng rpm  TBD - Nebraska Test
Max Unballasted Drawbar Power @ Eng rpm  TBD - Nebraska Test
75% Load, Full Engine rpm (Unballasted)  TBD - Nebraska Test
75% Load @ Reduced rpm (Unballasted)  TBD - Nebraska Test
Transmission
Std. Transmission; Forward/Reverse  24/24 AutoQuad PLUS ECO; 40 km/h
   24/24 AutoQuad PLUS ECO; 25 mph
Opt. Transmission; Forward/Reverse  PowrQuad PLUS 16F/16R (30); AutoQuad PLUS ECO 24F/24R Transmission (40);  AutoQuad PLUS ECO 24F/24R (50); Infinitely Variable Transmission (40); Infinitely Variable Transmission (50) km/h
   PowrQuad PLUS 16F/16R (19); AutoQuad PLUS ECO 24F/24R Transmission (25);  AutoQuad PLUS ECO 24F/24R (31); Infinitely Variable Transmission (25); Infinitely Variable Transmission (31) mph
Reverser  Left-hand base
On-the-Go Shifting (Yes/No/Partial)  Yes
Clutch; Wet/Dry  Wet
Creeper  Included with IVT; Optional on PowrQuad and AutoQuad transmissions
Power Take-Off (PTO)
Standard  540/1000 RPM, 1-3/8 In. Independent Rear Reversible PTO
Optional  3-Speed 540/540E/1000 Rear Reversible PTO with Power Assisted PTO Shifting
PTO Speeds @ Engine rpm  ---
PTO Actuation  Electrohydraulic
Hydraulics
Type  Closed-center, pressure/flow compensated
Pump Rated Output, GPM (L/min.)  ---
Standard  114 Advertised L/min
   30.1 Advertised gpm
Optional  ---
Rated Flow @ One SCV, GPM (L/min.)  TBD - Nebraska Test
Max Output @ SCV Couplers, GPM (L/min.)  TBD - Nebraska Test
Maximum Operating Pressure, psi (kPa)  20000 kPa
   2900 psi
Maximum Hydraulic Power, hp (kW)  TBD - Nebraska Test
Hitch Draft Control Load Sense Type  Electrohydraulic
Remote Control Valves Available  2-450 Series mechanical SCVs standard, up to 4-450 Series electronic SCVs optional
Hitch Category (SAE Designation)  2/3N
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt.  ---
OECD  ---
Standard  TBD - Nebraska Test
Optional  TBD - Nebraska Test
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (SAE)  ---
Standard  N/A
Optional  N/A
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (ASAE)  ---
Standard  N/A
Optional  N/A
Sensing type  Electronic lower link
Joystick SCV control  Mechanical or electronic
Final Drive
Type  Inboard planetary three pinion
Differential controls  Electrohydraulic
Availability  ---
Front  Yes
Front & Rear  ---
Engage On-the-Go Rear Differential Lock  Yes
Axle Type  Flange Axle
Brakes, Type and Control  Wet-disk hydraulic power brakes
Operator Station
Rollover Protective Structure, OOS  ---
Rigid - Foldable - Telescopic  ---
Platform - Flat/Straddle  ---
Gearshift Location - Console/Floor  ---
Cab  ComfortView™ cab
Doors  2 panorama doors
Platform - Flat/Straddle  Flat
dB(A) Rating  TBD - Nebraska Test
Seat Suspension System  Air suspended seat
2WD Dimensions
Wheelbase, in. (mm)  2580 mm
   102 in.
Front Tread Range, in. (mm)  1485-2438 mm
   58.5-96 in.
Rear Tread Range, in. (mm)  1604-2302 mm
   63.1-90.6 in.
Minimum Rear Tread Setting, in. (mm)  N/A
Front Axle Clearance, in. (mm)  469 mm
   18.5 in.
Turning Radius w/Brakes, ft (m)  N/A
Turning Radius w/o Brakes, ft (m)  N/A
Unballasted Operating Weight, lb (kg)  N/A
Approx. Ship Wgt, lb (kg) Open; Cab  5100 kg
   11244 lb
MFWD Dimensions
Wheelbase, in. (mm)  2580 mm
   102 in.
Front Tread Range, in. (mm)  1616 to 1924 mm
   63.6 to 75.7 in.
Front Axle Clearance, in. (mm)  469 mm
   18.5 in.
Turning Radius w/Brakes, ft (m)  N/A
Turning Radius w/o Brakes, ft (m)  N/A
Limited Slip Differential  N/A
Unballasted Operating Weight, lb (kg)  N/A
Approx. Ship Wgt, lb (kg) Open; Cab  5470 kg
   12059 lb
4WD Dimensions
Wheelbase, in. (mm)  ---
Wheel Tread, Min. to Max. in. (mm)  ---
Turning Radius w/o Brakes, ft (m)  ---
Nebraska Test Unballasted w/Duals, lb (kg)  ---
Unballasted Weight, lb (kg)  ---
Standard Tires
2WD  ---
Front  10.0-16.0
Rear  18.4R34
MFWD  ---
Front  12.4R24
Rear  16.9R30
4WD  ---
Track widths  ---
Miscellaneous
Country of Manufacture  Mannheim, Germany
Ballasting Restrictions, lb (kg)  Refer to operator's manual
*Notes  Updated - 28 March 2015
