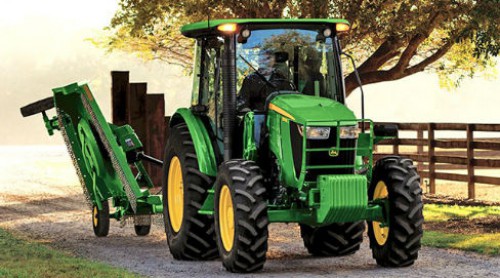

John Deere 5100M

John Deere 5100M for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

5M Series Tractors



  • John Deere Power Tech Diesel Engine
  • Choose from 12F/4R, 16F/16R, and 32F/16R transmission options
  • Choose climate-controlled cab, fixed open station
Manufacturer John Deere
Model 5100M (2016)
Official Test
Nebraska Test number  Factory observed
Engine
Manufacturer  John Deere PowerTech PWL
Engine family  FJDXL04.5211
Aspiration  Turbocharged / Air-to-Air Aftercooled
Cylinders/Displacement, cu. in. (L)  4.5 L
   4/276 cu in.
Cylinder Liners  Wet Sleeved
Fuel tank capacity, US Gal. (L) (Open; Cab)  ---
Standard  114; 140 L
   30; 37 gal.
Optional  144; 174 L
   38; 46 gal.
Underhood muffler  Yes
Performance
Advertised PTO hp (kW) @ Rated rpm  63 @ 2100 per SAE kW
   85 @ 2100 per SAE PTO hp
Official PTO hp (kW) @ Rated rpm  ---
@ Standard PTO @ Eng rpm  ---
Maximum @ Eng rpm  ---
Advertised Engine hp (kW) @ Rated speed  74 @ 2100 per ISO 97/68/EC kW
   100 @ 2100 per ISO 97/68/EC engine hp
Max Unballast Drwbr hp (kW) @ Eng rpm  ---
Maximum Torque (PTO) @ rpm, lb-ft (Nm)  418 @ 1600
Max Torque Rise (80% rtd spd) @ Eng rpm  ---
Maximum Torque Rise % (PTO) @ Eng rpm  30 @ 1600
Fuel Use, U.S. gal./hr & hp hr/gal. at:
PTO @ Rated Eng rpm  ---
Standard PTO Speed @ Eng speed  ---
Maximum PTO Power @ Eng rpm  ---
Maximum Engine Power @ Eng rpm  ---
Max Unballasted Drawbar Power @ Eng rpm  ---
75% Load, Full Engine rpm (Unballasted)  ---
75% Load @ Reduced rpm (Unballasted)  ---
Transmission
Std. Transmission; Forward/Reverse  16F/16R PowrReverser
Opt. Transmission; Forward/Reverse  12F/4R SyncShuttle Plus, 32F/16R PowrReverser Plus
Reverser  Left Hand, Mechanical
On-the-Go Shifting (Yes/No/Partial)  Partial
Clutch; Wet/Dry  Wet
Creeper  16F/16R PowrReverser Plus
Power Take-Off (PTO)
Standard  Independent 540/540 Economy
Optional  540/540E/1000
PTO Speeds @ Engine rpm  540 @ 2100; 540E @ 1645 rpm
PTO Actuation  Electrohydraulic
Hydraulics
Type  Open Center
Pump Rated Output, GPM (L/min.)  ---
Standard  24.7 gpm
   94 L/min
Optional  ---
Rated Flow @ One SCV, GPM (L/min.)  18.4 gpm
   70 L/min
Max Output @ SCV Couplers, GPM (L/min.)  ---
Maximum Operating Pressure, psi (kPa)  2900 psi
   20000 kPa
Maximum Hydraulic Power, hp (kW)  31.1 hp
   23.2 kW
Hitch Draft Control Load Sense Type  Electrohydraulic
Remote Control Valves Available  0 (opt. 3)
Hitch Category (SAE Designation)  2; convertible to 1
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt.  ---
OECD  ---
Standard  2100 kg
   4600 lb
Optional  2550 kg
   5600 lb
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (SAE)  ---
Standard  ---
Optional  ---
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (ASAE)  ---
Standard  ---
Optional  ---
Sensing type  Lower Link
Joystick SCV control  Optional
Final Drive
Type  Inboard Planetary
Differential controls  Electrohydraulic
Availability  ---
Front  No
Front & Rear  No
Engage On-the-Go Rear Differential Lock  Yes
Axle Type  Flanged
Brakes, Type and Control  Hydraulic Wet Disc
Operator Station
Rollover Protective Structure, OOS  ---
Rigid - Foldable - Telescopic  Foldable, 2-Post
Platform - Flat/Straddle  Flat
Gearshift Location - Console/Floor  Floor
Cab  ---
Doors  2
Platform - Flat/Straddle  Flat
dB(A) Rating  80
Seat Suspension System  Mechanical (opt. Air Ride opt. Low Frequency heated Air Ride)
2WD Dimensions
Wheelbase, in. (mm)  235 cm
   92.5 in.
Front Tread Range, in. (mm)  1463 - 2098 mm
   57.6 - 82.6 in.
Rear Tread Range, in. (mm)  1348 - 2054 mm
   53.1 - 80.9 in.
Minimum Rear Tread Setting, in. (mm)  1348 mm
   53.1 in.
Front Axle Clearance, in. (mm)  477.5 mm
   18.8 in.
Turning Radius w/Brakes, ft (m)  3.51 m
   11.2 ft
Turning Radius w/o Brakes, ft (m)  3.9 m
   12.8 ft
Unballasted Operating Weight, lb (kg)  ---
Approx. Ship Wgt, lb (kg) Open; Cab  3400; 3810 kg
   7500; 8400 lb
MFWD Dimensions
Wheelbase, in. (mm)  2301.24 mm
   90.6 in.
Front Tread Range, in. (mm)  1340 - 1904 mm
   52.8 - 75.0 in.
Front Axle Clearance, in. (mm)  454 mm
   17.9 in.
Turning Radius w/Brakes, ft (m)  3.9 m
   12.8 ft
Turning Radius w/o Brakes, ft (m)  4.4 m
   14.4 ft
Limited Slip Differential  Yes
Unballasted Operating Weight, lb (kg)  ---
Approx. Ship Wgt, lb (kg) Open; Cab  3630; 4040 kg
   8000; 8900 lb
4WD Dimensions
Wheelbase, in. (mm)  ---
Wheel Tread, Min. to Max. in. (mm)  ---
Turning Radius w/o Brakes, ft (m)  ---
Nebraska Test Unballasted w/Duals, lb (kg)  ---
Unballasted Weight, lb (kg)  ---
Standard Tires
2WD  ---
Front  11L-15 8PR F2
Rear  18.4R30 R1
MFWD  ---
Front  12.4R24 R1
Rear  18.4R30 R1
4WD  ---
Track widths  ---
Miscellaneous
Country of Manufacture  Augusta, GA
Ballasting Restrictions, lb (kg)  ---
*Notes  Updated 8/31/2014
