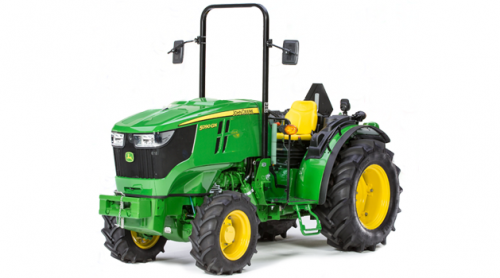

John Deere 5090GV-5090GN Tractor

John Deere 5090GV-5090GN Tractor for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

5G Narrow Series



  • Working widths down to 43 inches
  • Improved turning radius on the 5GN Series
  • FT4 90 hp engine/76 hp PTO
  • Two transmissions available: 12F/12R and 24F/12R
Model 5090GV 5090GN
ENGINE
Aspiriation Turbocharged Turbocharged
Cylinders/Displacement, cu. in. (L) 4/206.7 (3.4) 4/206.7 (3.4)
FUEL TANK CAPACITY, US GAL. (L) (OPEN;CAB)
Standard 19.3 (73) 19.3 (73)
Optional N/A 26.7 (101)
TRANSMISSION
Std. Transmission: Forward/Reverse 12F/12R SyncReverser 12F/12R SyncReverser
Opt. Transmission: Forward/Reverse 24F/12R PowrReverser 24F/12R PowrReverser
Clutch; Wet/Dry dry/wet (24F/12R PowReverser dry/wet (24F/12R PowReverser
PTO (POWER TAKE-OFF)
Standard (shiftable) Independent 540/540 Economy Independent 540/540 Economy
PTO Actuation - Standard/Optn Mechanical/Electrohydraulic Mechanical/Electrohydraulic
HYDRAULICS
Type Open Center Open Center
Pump Rated OUtput, GPM (L/mn) Standard/ |Optional 25.6 (97) | 33.3 (126) 25.6 (97) | 33.3 (126)
Rated Flow @ One SCV, GPM (L/min.) 17.6 (66.8) 17.6 (66.8)
Remote Control Valves Available 2 std. (up to 4 opt) 2 std. (up to 4 opt)
High Category (SAE Designation) 1/1N 2/1
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (ASAE) 3593 (1630) 3593 (1630)
OPEN OPERATOR STATION (Rollover Protective Structure, OOS)
Rigid - Foldable - Telescopic Foldable, 2-Post Foldable, 2-Post
CAB
Seat Suspension System Mechanical (Opt. Air Ride) Mechanical (Opt. Air Ride)
2WD DIMENSIONS
Wheelbase, in. (mm) 82.6 (2098) 82.6 (2098)
Minimum Rear Tread Setting, in. (mm) 39 (991) 49.5 (1257)
Front Axle Clearance, in. (mm) min - max 11.5 (292.26) 11.5 - 12.6 (292 - 322)
Approx. Ship Wgt, lb (kg) Open; Cab 5379 (2440); 5853 (2655) 5567 (2525); 6272 (2845)
MFWD DIMENSIONS
Wheelbase, in. (mm) 82.6 (2098) 82.6 (2098)
Minimum Rear Working Width, in. (mm) 39 (991) 49.5 (1257)
Front Axle Clearance, in. (mm) min - max 8.9 -10.5 (227 - 267) 10 11.4 (254 -289)
Approx. Ship Wgt, lb (kg) Open; Cab 5578 (2530); 6052 (2745) 5864 (2660); 6559 (2975)
