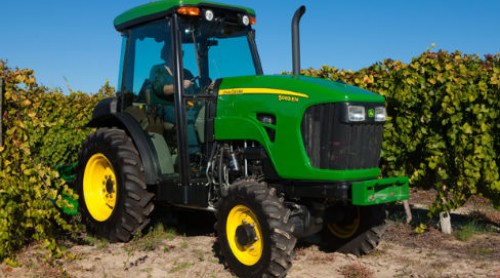

John Deere 5083EN

John Deere 5083EN for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

5EN Narrow Series



  • Narrow design for vineyard, orchard and nursery producers
  • Just 45.2 inches (114.8 cm) wide from the outer edges of the rear tires
  • Available in cab and open station configurations
  • Choose 2WD or MFWD
Manufacturer John Deere
Model 5083E Narrow
Official Test
Nebraska Test number Factory Observed
Engine
Manufacturer John Deere PowerTech
Engine family BJDXL04.5111
Aspiration Turbocharged
Cylinders/Displacement, cu. in. (L) 4/276 (4.5)
Cylinder Liners Sleeved
Fuel tank capacity, US Gal. (L) (Open; Cab) ---
Standard 19 (71.9)
Optional ---
Underhood muffler Yes
Performance
Advertised PTO hp (kW) @ Rated rpm 69 (51) @ 2400 per SAE
Official PTO hp (kW) @ Rated rpm ---
@ Standard PTO @ Eng rpm ---
Maximum @ Eng rpm ---
Advertised Engine hp (kW) @ Rated speed 83 (61.8) @ 2400 per ISO 97/68/EC
Max Unballast Drwbr hp (kW) @ Eng rpm ---
Maximum Torque (PTO) @ rpm, lb-ft (Nm) ---
Max Torque Rise (80% rtd spd) @ Eng rpm ---
Maximum Torque Rise % (PTO) @ Eng rpm ---
Fuel Use, U.S. gal./hr & hp hr/gal. at:
PTO @ Rated Eng rpm ---
Standard PTO Speed @ Eng speed ---
Maximum PTO Power @ Eng rpm ---
Maximum Engine Power @ Eng rpm ---
Max Unballasted Drawbar Power @ Eng rpm ---
75% Load, Full Engine rpm (Unballasted) ---
75% Load @ Reduced rpm (Unballasted) ---
Transmission
Std. Transmission; Forward/Reverse 12F/12R PowrReverser
Opt. Transmission; Forward/Reverse 24F/24R PowrReverser
Reverser Yes (hydraulic)
On-the-Go Shifting (Yes/No/Partial) Partial
Clutch; Wet/Dry Wet
Creeper Optional 16F/16R
Power Take-Off (PTO)
Standard Independent 540/ 540 Economy (shiftable)
Optional ---
PTO Speeds @ Engine rpm ---
PTO Actuation Electrohydraulic
Hydraulics
Type Open Center
Pump Rated Output, GPM (L/min.) ---
Standard 25 (94.6)
Optional ---
Rated Flow @ One SCV, GPM (L/min.) 18.4 (69.6)
Max Output @ SCV Couplers, GPM (L/min.) ---
Maximum Operating Pressure, psi (kPa) ---
Maximum Hydraulic Power, hp (kW) ---
Hitch Draft Control Load Sense Type Mechanical
Remote Control Valves Available 2 std. (3 opt.)
Hitch Category (SAE Designation) 2/1/1N
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. ---
OECD ---
Standard 3374 (1530)
Optional ---
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (SAE) ---
Standard ---
Optional ---
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (ASAE) ---
Standard ---
Optional ---
Sensing type Top link
Joystick SCV control Optional
Final Drive
Type Inboard Planetary
Differential controls Mechanical foot pedal
Availability ---
Front ---
Front & Rear ---
Engage On-the-Go Rear Differential Lock Yes
Axle Type Flanged
Brakes, Type and Control Hydraulic Wet Disk
Operator Station
Rollover Protective Structure, OOS ---
Rigid - Foldable - Telescopic Foldable, 2-Post
Platform - Flat/Straddle Straddle
Gearshift Location - Console/Floor Floor
Cab ---
Doors 1, left-hand
Platform - Flat/Straddle Straddle
dB(A) Rating ---
Seat Suspension System Mechanical
2WD Dimensions
Wheelbase, in. (mm) 85.7 (2177)
Front Tread Range, in. (mm) 40.9 - 56.7 (1039 - 1439)
Rear Tread Range, in. (mm) 35.4 - 58.9 (898 - 1497)
Minimum Rear Tread Setting, in. (mm) 35.4 (898)
Front Axle Clearance, in. (mm) 14.1 (358)
Turning Radius w/Brakes, ft (m) 11.1 (3.40)
Turning Radius w/o Brakes, ft (m) 12.83 (3.91)
Unballasted Operating Weight, lb (kg) ---
Approx. Ship Wgt, lb (kg) Open; Cab 5,483 (2487) ; 5,622 (2550)
MFWD Dimensions
Wheelbase, in. (mm) 85.7 (2177)
Front Tread Range, in. (mm) 42.4 - 47.6 (1078 - 1208)
Front Axle Clearance, in. (mm) 9.8 (249)
Turning Radius w/Brakes, ft (m) 11.58 (3.53)
Turning Radius w/o Brakes, ft (m) 14.3 (4.36)
Limited Slip Differential Standard
Unballasted Operating Weight, lb (kg) ---
Approx. Ship Wgt, lb (kg) Open; Cab 5645 (2560); 5,784 (2624)
4WD Dimensions
Wheelbase, in. (mm) ---
Wheel Tread, Min. to Max. in. (mm) ---
Turning Radius w/o Brakes, ft (m) ---
Nebraska Test Unballasted w/Duals, lb (kg) ---
Unballasted Weight, lb (kg) ---
Standard Tires
2WD ---
Front 6.5-16 6PR F2
Rear 12.4-24 6PR R1
MFWD ---
Front 8.3-16 6PR R1
Rear 12.4-24 6PR R1
4WD ---
Track widths ---
Miscellaneous
Country of Manufacture Augusta, GA
Ballasting Restrictions, lb (kg) ---
*Notes Updated 7/1/2009
